蜂窝路由器和终端 企业路由器 工业路由器 运输路由器

Digi IX40 5G 边缘计算工业IoT 解决方案

5G 边缘计算工业IoT 蜂窝路由器解决方案,专为工业 4.0 打造


  • 全球 5G 和 LTE 支持以及全球主要运营商网络的认证
  • Digi Containers实现功能强大、经济高效的应用
  • 用于托管容器化应用和定制解决方案的集成边缘计算能力
  • 以太网、SFP、串行、I/O 和 Modbus 桥接
  • 通过 Digi 获得专利的SureLink®、VRRP+ 协议和双 SIM 卡插槽实现极具弹性的蜂窝连接
  • 支持 GPS、GLONASS、北斗和伽利略的全球导航卫星系统接收器
  • 免许可证的企业软件:VPN、防火墙、日志记录和身份验证
  • 符合美国政府FIPS 140-2网络安全标准
  • Digi Remote Manager®平台便于设置、大规模配置和管理
  • 外壳坚固,可选择 DIN 导轨或架式安装
  • 用于 5G/LTE 广域网聚合和即时故障切换的Digi WAN Bonding

Digi IX40 is a 5G edge computing industrial IoT router solution, integrated with Digi Remote Manager (Digi RM) to empower rapid processing, analysis, and integration of industrial asset data.

Purpose-built for Industry 4.0, Digi IX40 supports the 5G connectivity and edge intelligence needed to enable numerous use cases ranging from predictive maintenance and asset monitoring to machine learning and advanced robotics. It seamlessly connects multiple machines, whether wired or wireless, in the most demanding environments, optimizing integration of cloud-delivered operational technology (OT) services with information technology (IT) to streamline complex operations and scale IT infrastructure.

With its all-in-one design, strong computing power and integrated memory, Digi IX40 offers substantial capabilities for real-time data processing, edge computing and advanced precision while reducing complexity and total cost of ownership. Digi Containers facilitate potent and cost-effective applications, providing additional flexibility and scalability for Industry 4.0, energy, smart cities and other uses.

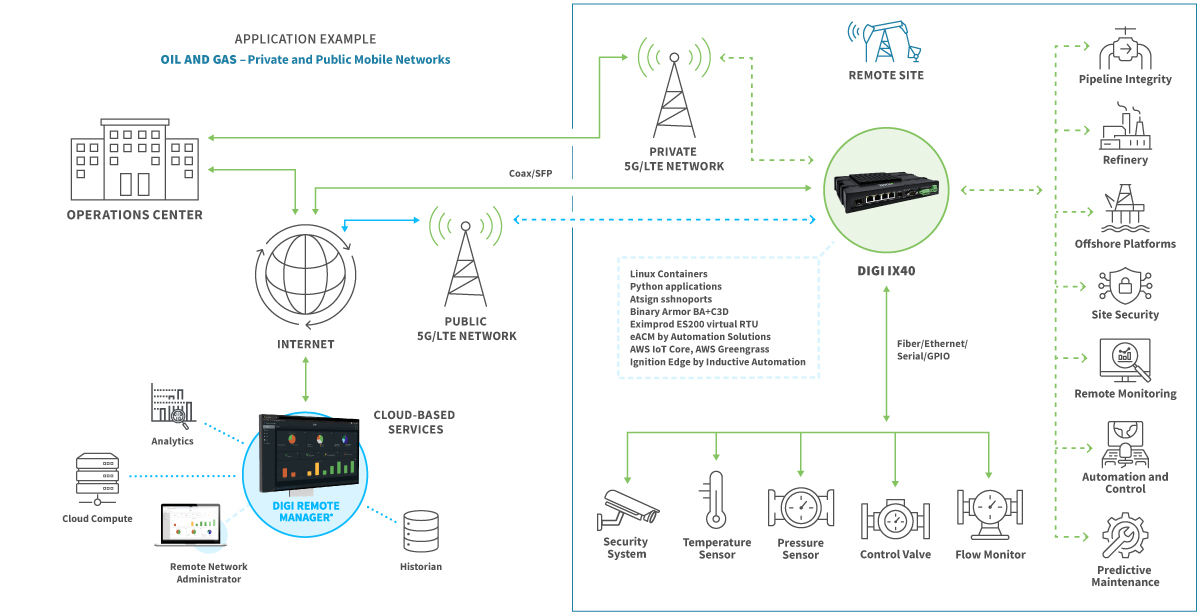

The Digi IX40 solution offers FirstNet Capable™ models designed to meet the demands of critical applications where reliability is essential for industrial use cases and emergency response. Additional use cases for Digi IX40 include manufacturing process automation, precision monitoring and control, industrial automation, utilities and traffic management.

Gain critical insights and manage your network with Digi RM — the cloud-based command center for your deployment. Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

5G
Digi TrustFence
FirstNet 就绪
OnGo 联盟
Digi 广域网绑定徽标

介绍 Digi 广域网绑定

Digi WAN Bonding 将多个连接组合成一个无缝、弹性的连接解决方案,确保在全球任何地方都能实现最佳性能和最长正常运行时间。

了解更多


介绍Digi Containers

管理日益复杂的IoT 应用程序变得更加容易。Digi Containers 是 Digi Remote Manager® 许可证的附加增值服务。Digi Containers 服务让您掌控一切,帮助您简化操作。

工业路由器比较

工业路由器比较

接受命令。

您的网络。你的方式。

游戏观看视频
掌控全局。你的网络。你的方式。

用自己的方式管理网络

远程设备管理:全网更新、数据洞察和控制。Digi Remote Manager 提供集中的可视性,并通过可操作的 24/7 全天候远程监控,将流程自动化,听命于您。

自动网络监控
自动网络监控

要监控数十、数百或数千个活动连接设备,需要网络监控软件。人眼无法跟上。有了 Digi RM 远程监控工具,您就可以掌控一切。作为您的IoT 设备管理平台,Digi RM 监控您的网络是否受到破坏和入侵,并在需要采取行动时通知您。为重要情况设置警报。获取网络性能报告。随时随地检查任何设备。

配置管理
配置管理

Digi Remote Manager 其他IoT 设备管理平台所不具备的功能:一次性配置所有设备、进行单独配置更改,以及在组中管理这些专门配置。 创建组和单个配置。快速准确地部署。让 Digi RM 监控设备安全。

固件更新
固件更新

如今的IoT 设备更加智能,功能更加丰富,在边缘执行的任务也更多。而且它们并非一成不变。您可能需要更新固件以增强功能、下载自定义脚本、使您的设备符合企业安全策略,或针对IoT 安全威胁部署补丁。Digi Remote Manager 让您掌握网络管理工具,在几分钟内部署固件更新或向设备发送文件,即使您的网络中有成千上万台设备。只需点击几下,即可管理您的动态网络。确保设备安全。

边缘计算
检测和故障排除

Digi RM 随时待命,即使在网络管理员的下班时间也不例外。作为您的网络监控解决方案,Digi RM能在问题出现时通知您,发送警报和报告,让您的团队高枕无忧。他们可以随时深入了解整个网络或单个设备的健康状况,并根据需要远程排除故障、测试和重启设备。让网络监控工具为您服务,让您的工作更智能。

Digi IX40
SKU: IX40-05 New
Digi IX40 — 5G with LTE-Advanced Pro Cat 19 4x4 and 3G fallback, quad Ethernet, R-232/422/485, GNSS, FirstNet Capable™
IX40-05 如何购买
SKU: IX40-04 Coming soon
Digi IX40 — 4G LTE-Advanced Pro Cat 12 with 3G fallback, quad Ethernet, RS-232/422/485, GNSS
IX40-04 联系我们
可用配件
商品编号:76002147 New
Digi IX40 5G Industrial Starter Kit — includes 30 W power supply and 4 wideband cellular antennas
76002147 如何购买
商品编号:76002148 New
Digi LTE Industrial Starter Kit — includes 30 W power supply and 2 wideband cellular antennas
76002148 如何购买
商品编号:76002093 DIN 导轨安装支架套件 76002093 如何购买
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager 是一个技术平台,能够从单一指挥点自动部署、监控和管理数千台设备。比较 Digi 的多种产品和不同的订购条款,以满足您的业务需求。
  开始
增值服务
Digi Containers
Digi Remote Manager 可通过容器部署自定义应用程序
  开始
Digi 广域网绑定
在多个连接之间实现弹性连接和最高性能
  开始
规格 Digi IX40
无线接口
手机/WWAN
IX40-05: 5G NSA, 5G SA, 4G LTE-ADVANCED PRO CAT 19 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14 FirstNet®, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79;
4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48, B66, B71;
3G bands: B1, B2, B3, B4, B5, B6, B8, B19
IX40-04: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+ 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71;
3G bands: B1, B2, B4, B5, B6, B8, B9, B19
连接器 (2) or (4) 50 Ω SMA;  center pin: female
SIM 插槽 (2) Nano-SIM (4FF) holders
SIM 安全 包括 SIM 卡插槽盖板
全球导航卫星系统
技术 第 9 代 GPS,带 L1 LNA,用于无源天线
ANTENNA Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1
IX40-04: supports passive GNSS antennas rated at 1.5 to 3 dBi only
IX40-05: supports passive GNSS antennas rated at 1.5 to 3 dBi or active antennas with 7.5 to 26 dB gain
程序 NMEA 4.11 和 TAIP
连接器 (1) 50 Ω SMA;  center pin: female
有线接口
以太网
端口/连接器 (4) RJ-45;10/100/1000 Mbps Base-T(自动感应);IEEE 802.3;可配置为广域网或局域网
输入/输出
端口/连接器 (2) 数字输入/输出;(2) 模拟输入(0 - 10 V;4 - 20 mA;12 位分辨率)
SFP
端口/连接器 (2) 1 Gb 功能 SFP 插座
序号
端口/连接器 (1) RS-232/422/485;DB-9 公头(DTE)
软件和管理
远程管理 Digi Remote Manager®(基于云)、SNMP v1/v2c/v3(用户安装/管理)、SMS
地方管理 网络用户界面(HTTPS);CLI(SSH、串口)
管理工具 SFTP、SCP;带 Wireshark PCAP 的协议分析仪;带 Syslog 的事件记录功能
处理器
应用处理器 1.6 GHz 四核 i.MX 8M Plus ARM® Cortex®-A53 处理器
存储器
内存/闪存 1 GB / 8 GB
物理
尺寸(长 X 宽 X 高) 234 mm x 154 mm x 41 mm (9.21 in x 6.06 in x 1.61 in)
重量 1.14 kg (2.51 lb)
状态 LED Power, WWAN, Ethernet (link, activity)
外壳/等级 Glass-filled polyphenylene sulphide / IP30 −40 °C to 85 °C (−40 °F to 185 °F)
电力需求
电源输入 12 to 30 VDC
电源连接器 拧紧式可拆卸接线板
功耗 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic)
环境
工作温度 −40 °C to 75 °C (−40 °F to 167 °F); reduced cellular performance may occur above 70 °C (158 °F)
储存温度 −45 °C to 85 °C (−49 °F to 185 °F)
相对湿度 0% 至 95%(无冷凝),温度 25 °C (77 °F)
批准*
细胞 PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon;
visit product certifications for latest updates
SAFETY / SECURITY IEC 62368-1, CB scheme, FIPS 140-2
排放/抗扰度 FCC Part 15 Subpart B, ISED, CE, RED, UKCA
保修
产品保修 3 年*
*Visit product certifications for latest updates.
**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

企业软件 说明
协议支持 HTTPS, TLS, SCP (client and server), SFTP, SNMP (v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
安全 / VPN IP 过滤、带脚本的状态检测防火墙、地址和端口转换;VPN:带 IKEv1、IKEv2、NAT 穿越的 IPSec;SSLv3、FIPS 197、Open VPN 客户端和服务器;L2TP;VPN 隧道;加密:SHA-1、MD5、RSA;加密:DES、3DES 和 AES,最高 256 位(IPsec 的 CBC 模式);身份验证:RADIUS、TACACS+、X.509 SCEP;证书;内容过滤(通过第三方);MAC 地址过滤;VLAN 支持
路由 IP 穿透;NAT、NAPT 与 IP 端口转发;以太网桥接;GRE;组播路由;路由协议:PPP、PPPoE、RIP(v1、v2)OSPF、BGP、iGMP 路由(组播);IP 故障切换:VRRP、VRRP+TM;自动故障切换/故障恢复到第二个 GSM 网络/备用 APN;Digi SureLink®
排放/抗扰度 DHCP;与 No-IP/DynDNS 兼容的动态 DNS 客户端;通过 TOS/DSCP 实现 QoS;Modbus UDP/TCP 转串行;Modbus 桥接,用于连接不同的现场资产
