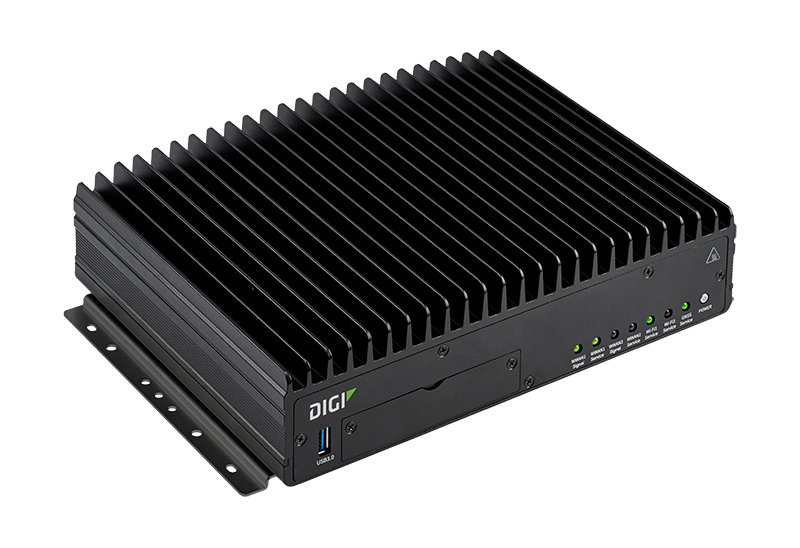

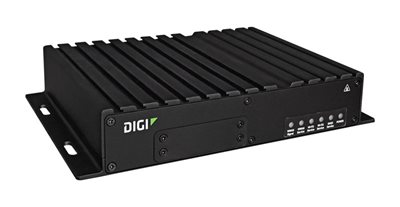

Digi TX64 5G / LTE-Advanced Pro Cellular Router

New

High performance cellular router with dual redundant communications for complex transit and transportation systems


  • 5G-ready platform: future-built with powerful quad-core processor
  • Segmented private and public data communication across 5G NR Sub-6 GHz, 4G LTE-Advanced Pro and 4G LTE-Advanced Pro modems
  • FirstNet Ready™ for primary responder communication
  • Wired Gigabit Ethernet (4-port) for onboard systems
  • Video and vehicle data offload over Wi-Fi 5 4x4 backhaul
  • Passenger Wi-Fi over Wi-Fi 5 2x2 access point
  • Digi Remote Manager® platform for easy setup, mass configuration and management
How to Buy

Ideal for challenging transportation and mobile environments, Digi TX64 is a 5G and 4G LTE-Advanced Pro cellular router with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi access point, USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including dead reckoning GNSS and Bluetooth®.

Internet access for riders is managed securely and without impact to onboard bus systems. Technologies like 5G NR, EN DC and carrier aggregation deliver up to Gigabit speeds to passengers. Onboard systems retain priority and any remaining bandwidth is made available to Internet traffic.

A captive portal and splash page enable term acceptance, targeted messaging and agency branding. Standard HTTP/DNS redirect can be used to block malware and unwanted content through popular third-party service providers or an agency server. FirstNet Ready™ devices provide additional support for critical primary responder communication.

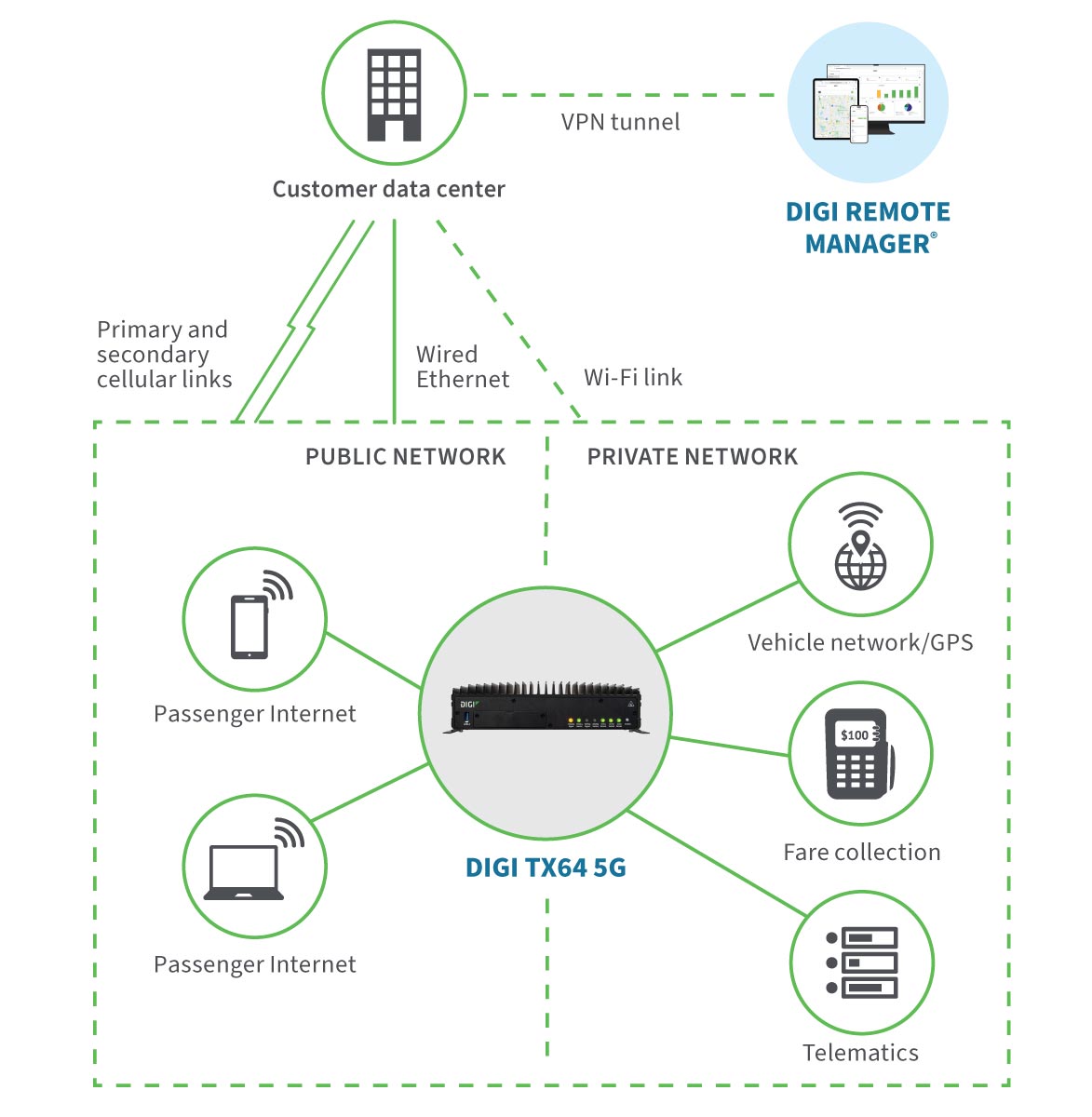

Reliable power circuitry supports 9-36 VDC input with ignition sense for direct integration into the vehicle’s power source. Dual cellular and dual Wi-Fi modules provide true segmented traffic flow of private and public data for fare collection, CAD/AVL data, camera log backhaul and passenger Wi-Fi access.

Key Industries

Fleet
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More


Ready to move to 5G?

Digi's 5G product suite is growing

Digi is rapidly rolling out 5G business solutions for all commercial applications, ranging from enterprise to industrial to transportation applications.

Meet Our 5G Solutions

Compare Transportation Routers

Compare Transportation Routers
White Paper

Drop-In Connectivity for Data on the Move

New Digi routers for versatile public and private on-board communications

Get a Copy
White Paper

Digi Routers

Get to PTC Compliance Faster

Read how rail-certified cellular communications can accelerate Positive Train Control (PTC) connectivity and compliance.

Get a Copy
Badge

2G/3G Shutdowns: Plan Ahead to Stay Ahead

The shutdowns are coming sooner than you’d like. And Digi is here to help you plan ahead to avoid disruptions, lost data and – even worse – lost revenue. Digi LTE Migration Services is standing by with everything to make things go smoothly and quickly. What you need. Just in time.

Beat the 2G/3G Shutdown
* For qualifying projects
SPECIFICATIONS Digi TX64
WIRELESS INTERFACES
WWAN*
5G NR SUB-6 GHZ WITH 4G LTE-ADVANCED PRO AND 3G FALLBACK (TX64-161) 5G NR Sub-6: n1, n2, n3, n5, n28, n41, n66, n71, n78, n79; 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 - FirstNet®, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71; 3G: B1, B2, B3, B4, B5, B6, B8, B9; Cat 20
LTE-ADVANCED PRO (TX64-141) LTE FDD: B1, B3, B7, B8, B12, B13, B14 - FirstNet®, B20, B25, B26, B28, B29; B30, B32, B48, B66, B71; LTE TDD: B38, B39, B40, B41, B42, B43, B46; 3G: B1, B2, B4, B5, B8; Cat 18
4G LTE-ADVANCED WITH 3G FALLBACK (TX64-121) LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B66; LTE TDD: B38, B40, B41; 3G: B1, B2, B4, B5, B8; Cat 11
CONNECTOR (2) or (4) x 50 Ω SMA per module (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF) per module
SIM SECURITY SIM slot cover plate included
WI-FI
DUAL MODULES Private backhaul: 4 x 4 MU-MIMO 5 GHz 802.11 a/n/ac Wave 2, up to 128 stations per module, 1.733 Gbps (max)
Public Wi-Fi: 2 x 2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac, up to 128 stations per module, 867 Mbps (max)
HOTSPOT Captive portal, customizable splash page
AUTHENTICATION Basic ToS acceptance, Enterprise RADIUS
3RD PARTY SERVICES Content filtering, embedded advertising
MODES Up to 4 access points and 1 client per Wi-Fi module (8+2 total)
SECURITY WPA/WPA2-personal, WPA/WPA2-enterprise
CONNECTORS Private backhaul: (4) 50 Ω RP-SMA (center pin: male)
Public Wi-Fi: (2) 50 Ω RP-SMA (center pin: male)
BLUETOOTH®
MODULE BLE 4.2
GPS
TECHNOLOGY Multi-constellation: concurrent reception of up to 2 GNSS (GPS, Galileo, GLONASS, BeiDou)
SENSITIVITY -163 dB
PROTOCOL NMEA 0183 V2.3 sentence output
CONNECTOR 1 x 50 Ω SMA (center pin: female); +3.3 VDC active antenna drive

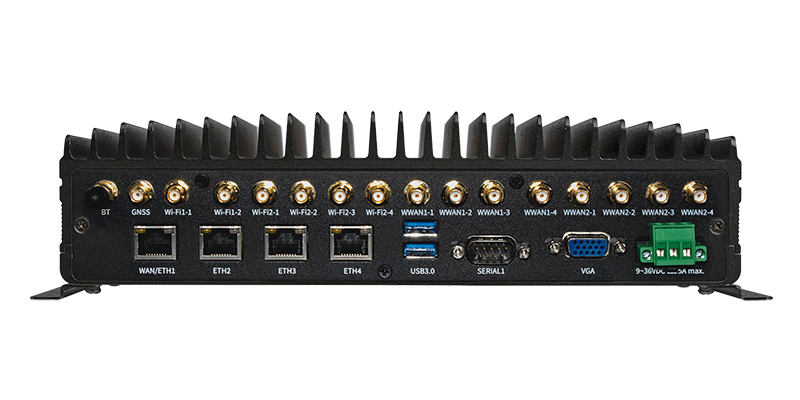

HARDWARE
SERIAL
PORTS / CONNECTOR (1) RS-232; DB-9 male
ETHERNET
PORTS / CONNECTOR (4) RJ-45
STANDARD IEEE 802.3; 10/100/1000 Base-T
USB
PORTS 3
STANDARD USB 3.0, Type A
MEMORY
RAM 2 GB
FLASH 8 GB (CFAST card)
PHYSICAL
DIMENSIONS (L X W X H) 260 mm x 196 mm x 67 mm (10.2 in x 7.8 in x 2.6 in)
WEIGHT 3.3 kg (7.25 lbs)

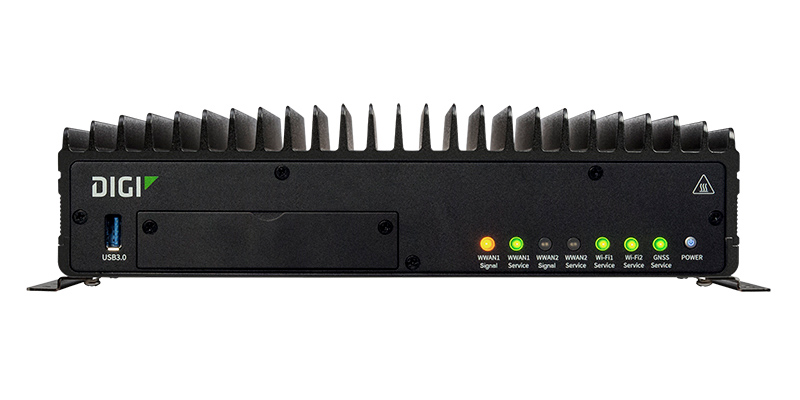

STATUS LEDS Power, WWAN (signal, service) per module, Wi-Fi service (per module), GNSS service, LAN (link, activty)
ENCLOSURE IP40 aluminum alloy
POWER
POWER INPUT 9 - 36 VDC, 60 W minimum power source required
POWER CONSUMPTION 28 W typical (idle); 41 W (peak RF Tx/Rx)
ENVIRONMENTAL

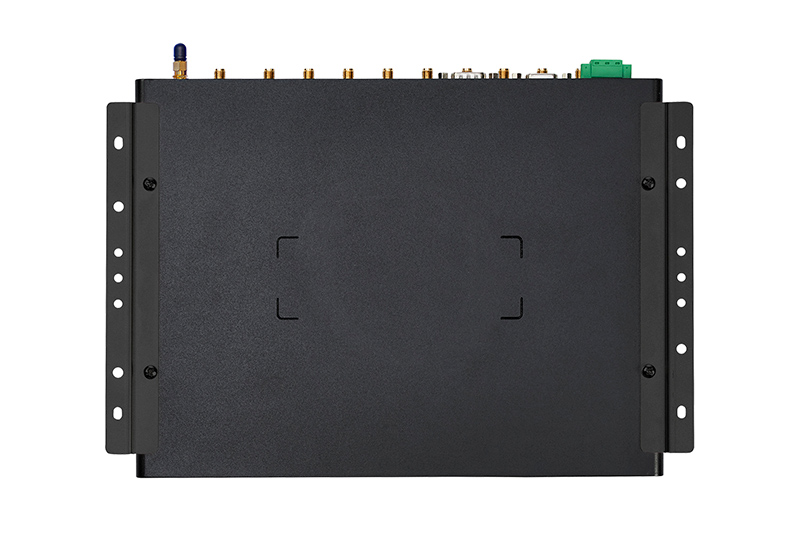

MOUNTING Flexible mounting options
OPERATING TEMPERATURE -30° C to 70° C (-22° F to 158° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 185° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing) @ 25° C (77° F)
NEMA
SPECIFICATION Meets or exceeds the NEMA TS2 environmental requirements (-34° C to 74° C temperature range; 18% to 95% humidity over the temperature range; Vibration: 0.5 g @ 5 Hz to 30 Hz; Shock: 10 g)
APPROVALS
CELLULAR PTCRB, AT&T, FirstNet Ready™, T-Mobile,  Verizon, PNTM, Verizon Frontline; visit www.digi.com/resources/certifications for latest cellular certifications
SAFETY UL 60950/EN62368, CSA 22.2 No. 60950
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B w/ IC, EN303413+EN301489-1/-19, CISPR 25, Level 3, ISO 11452-2, ISO 11452-4
ENVIRONMENTAL / INDUSTRIAL MIL-STD 810G (temperature, humidity, vibration, shock, dust)
VEHICLE SAE J1113-2 / J1455, ISO 7637-2/3, ISO 10605, ISO 16750-2 load dump
WARRANTY
PRODUCT WARRANTY 3-year**

*Transfer rates are network operator independent
**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager® Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager

ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, TLS v1.2, SNMP (v3), SSH; remote management via Digi Remote Manager®; Protocol analyzer, DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; DMNR; Dual-APN, X.509 certificate management; VRRP+
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; User Authentication: 2-factor authentication, RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: groups 1-32
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; Ethernet bonding; GRE; multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover; Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS; Nagios, DNS server, NTP server, mDNS, IPerf
LOCAL MANAGEMENT Web interface (HTTPS); CLI (SSH, serial port); SNMP v3 read-only; custom factory configuration
MANAGEMENT/ TROUBLESHOOTING PROTOCOLS Protocol analyzer with PCAP for Wireshark, event and system logging (with syslog), accessible from Digi Remote Manager, SFTP or SCP, CLI, Web UI, Intelliflow
PROGRAMMING TOOLS/ ENVIRONMENTS Python v3 (regularly updated to newest version)

For a comprehensive list of operating system features, please visit www.digi.com/solutions/by-technology/dal-operating-system/features.
