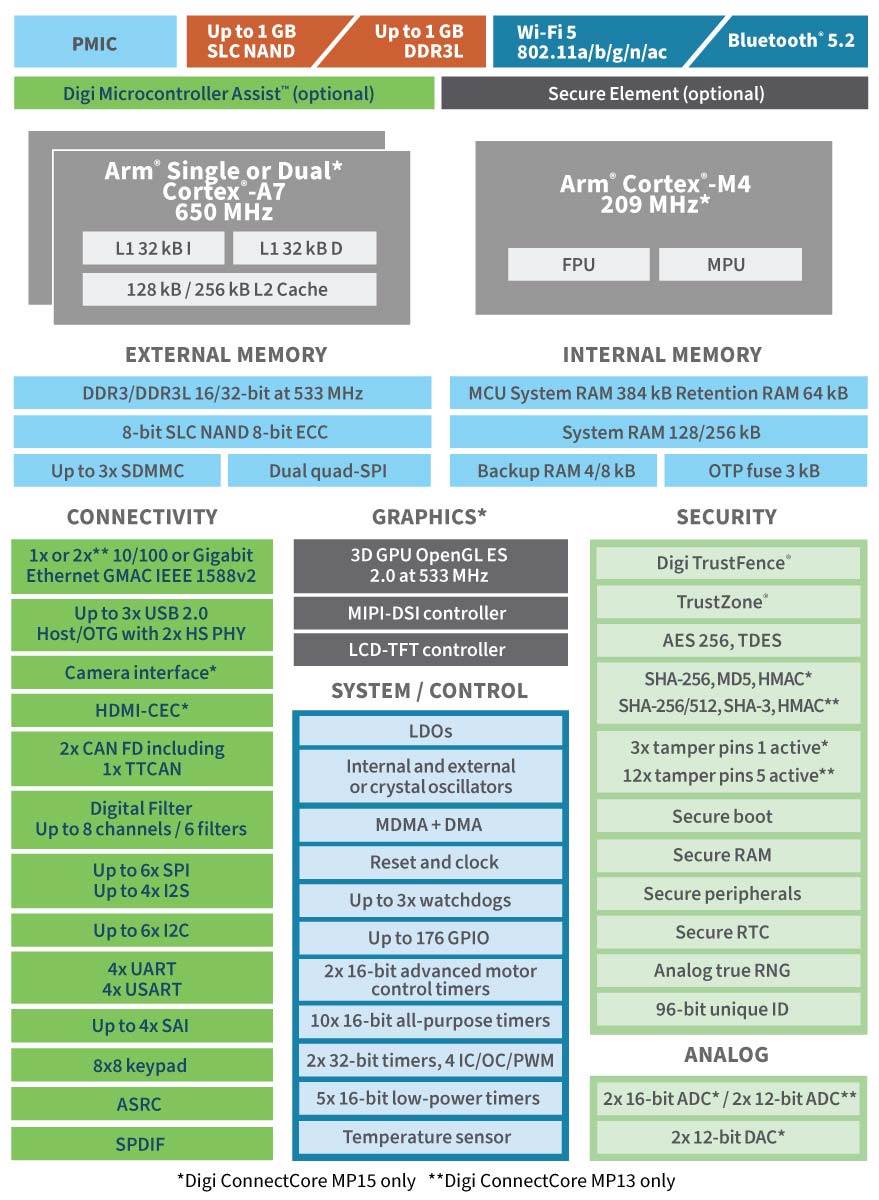

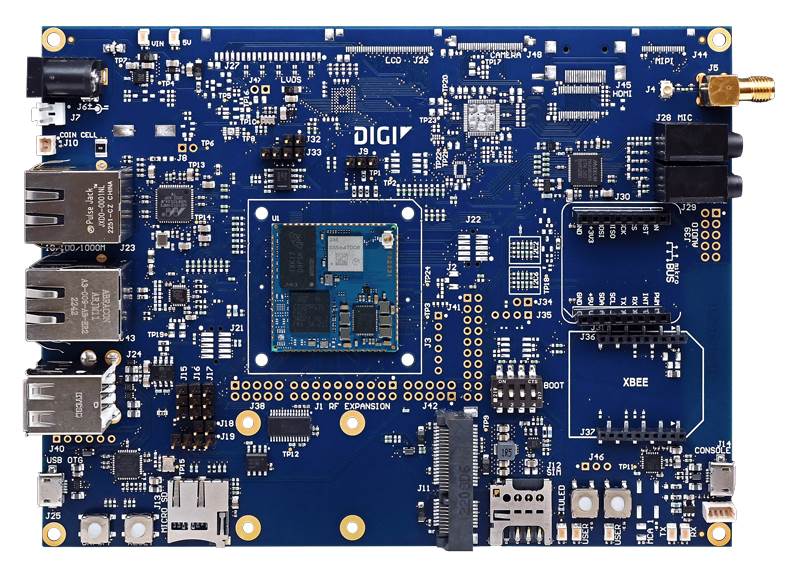

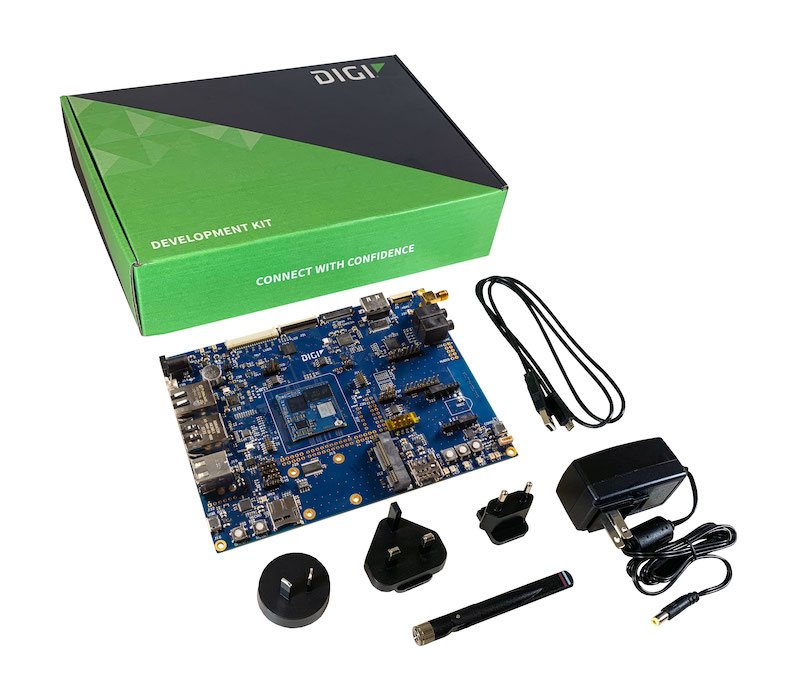

| 应用处理器 |

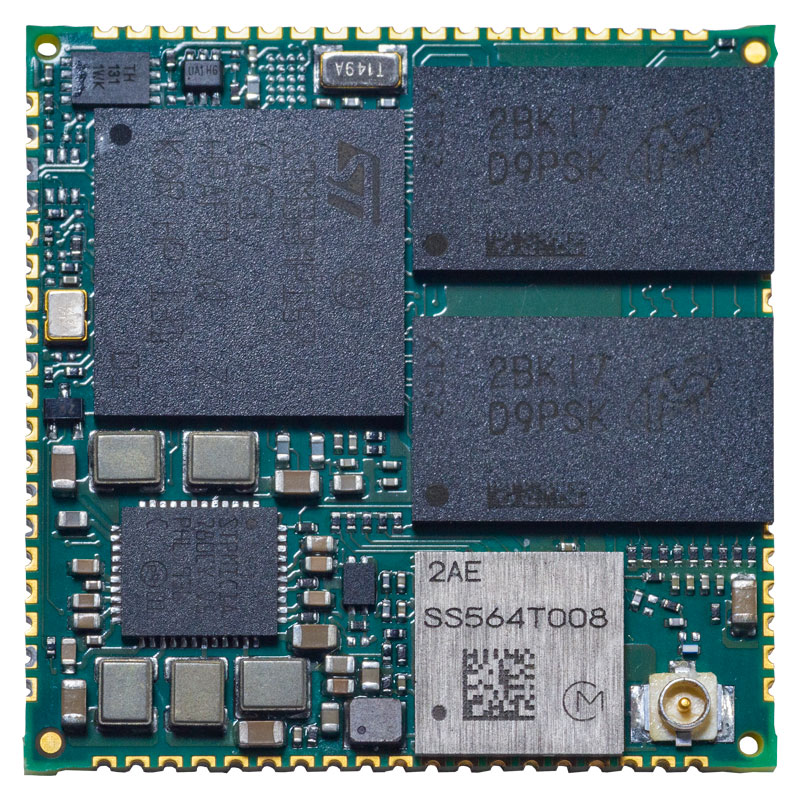

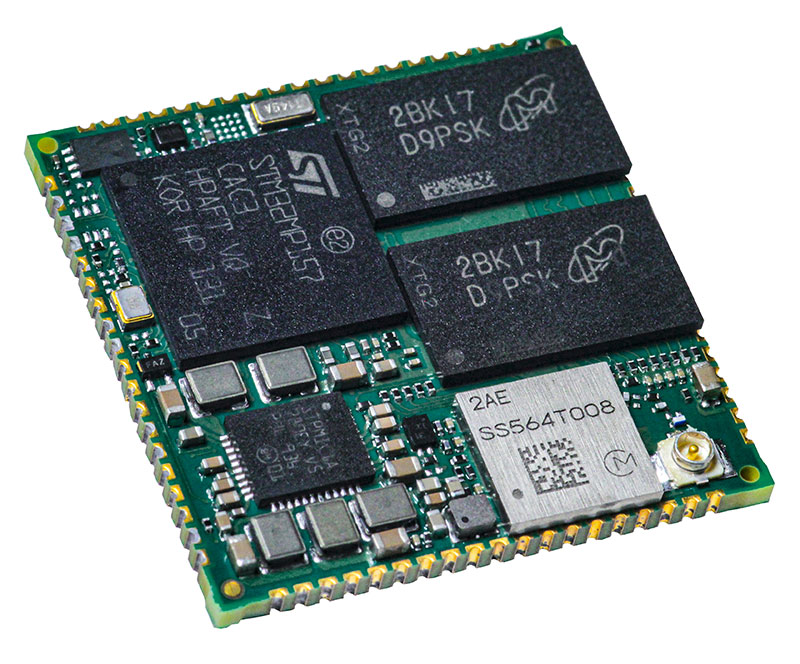

STMicroelectronics STM32MP157C, Arm® dual Cortex®-A7 at 650 MHz
Cortex®-M4 at 209 MHz with FPU/MPU, 3D GPU, secure boot, crypto engine |

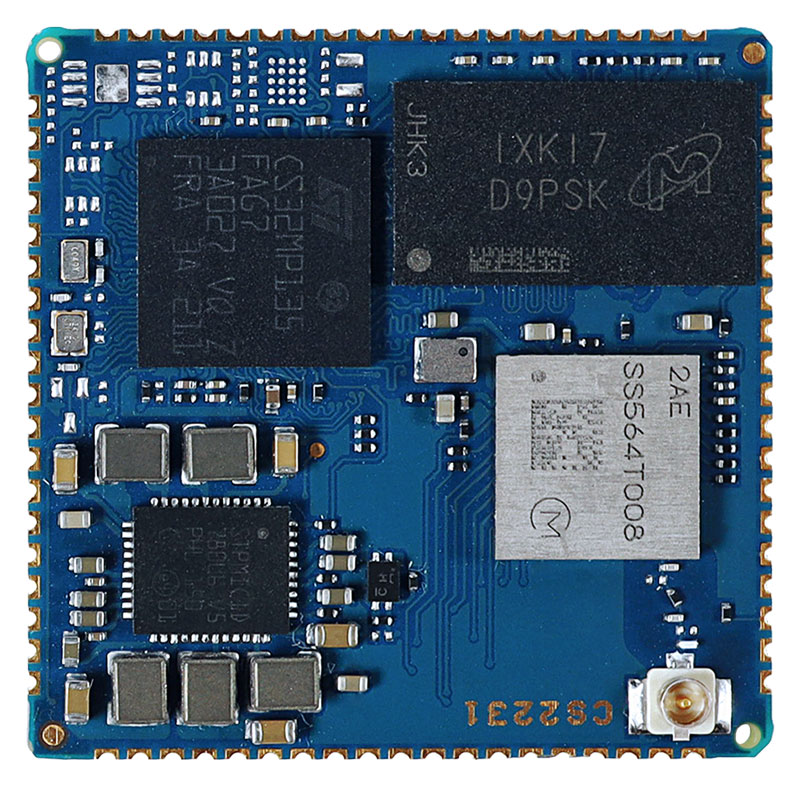

STMicroelectronics STM32MP133C，650 MHz 的 Arm® Cortex®-A7，安全启动，加密引擎 |
| 存储器 |
最高 1 GB SLC NAND 闪存，最高 1 GB DDR3L |
最高 1 GB SLC NAND 闪存，最高 1 GB DDR3L |
| PMIC |
意法半导体 STPMIC1 |
|
| 视频/图形 |
3D GPU (Vivante® — OpenGL® ES 2.0) running at up to 533 MHz, with performance up to 26 Mtriangle/s, 133 Mpixel/s
Parallel LCD-TFT controller, up to 24-bit digital RGB888, up to WXGA (1366 × 768) at 60 fps or up to Full HD (1920 × 1080) at 30 fps
MIPI® DSI 2 data lanes up to 1 Gbps each, up to WXGA at 60 fps (63 M pixels/s) or up to Full HD (1920 × 1080) at 30 fps |
|
| 摄像机 |
8 至 14 位摄像头 |
|
| 安全 |
Secure boot, TrustZone® peripherals, 3x tamper pins including 1x active tamper, 2x TRNG (6 triple oscillators), 2x CRC calculation units, 2x cryptographic processors, hardware acceleration with DMA support
encryption/decryption: DES/TDES: ECB (electronic codebook) and CBC (cipher block chaining) 64-, 128- or 192-bit key; AES: ECB, CBC, GCM, CCM, and CTR (counter mode) chaining algorithms, 128-, 192- or 256-bit key
Universal HASH: SHA-1, SHA-224 and SHA-256 (secure HASH algorithms), MD5, HMAC; Cortex®-M4 resources isolation
Digi TrustFence® embedded security framework |
Secure boot, TrustZone® peripherals, 12x tamper pins including 5x active tamper, 1x TRNG (6 triple oscillators), 1x CRC calculation units, 1x cryptographic processors, hardware acceleration with DMA support
encryption/decryption: DES/TDES: ECB (electronic codebook) and CBC (cipher block chaining) 64-, 128- or 192-bit key; AES: ECB, CBC, GCM, CCM, and CTR (counter mode) chaining algorithms, 128-, 192- or 256-bit key
Universal HASH: SHA-1, SHA-224 and SHA-256, SHA-384, SHA-512, SHA-3, HMAC;
Digi TrustFence® embedded security framework |
| 外设/接口 |
6x I2C, 4x UART + 4x USART, 6x SPI (3 with full duplex I2S)
4x SAI (stereo audio: I2S, PDM, SPDIF Tx), SPDIF Rx (4 inputs)
HDMI-CEC
3x SDMMC up to 8-bit (SD / eMMC™ / SDIO)
2x CAN FD (including 1 TTCAN)
2x USB 2.0 high-speed host + 1x USB 2.0 full-speed OTG
Up to 176 I/O ports with interrupt capability
2x ADCs (up to 16-bit)
1x temperature sensor
2x 12-bit D/A converters (1 MHz)
1x Digital Filter for Sigma Delta Modulator (DFSDM) with 8 channels/6 filters, internal or external ADC/DAC reference VREF+
2x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2x 16-bit advanced motor control timers
10x 16-bit general-purpose timers (including 2 basic timers without PWM)
5x 16-bit low-power timers
Secure RTC
2x 4 Cortex®-A7 system timers (secure, nonsecure, virtual, hypervisor)
1x SysTick M4 timer
3x watchdogs (2x independent and window) |
5x I2C, 4x UART, 5x SPI (4 with full duplex I2S)
2x SAI (stereo audio: I2S, PDM, SPDIF Tx), SPDIF Rx (4 inputs)
2x SDMMC up to 8-bit (SD / eMMC™ / SDIO)
2x CAN FD (including 1 TTCAN)
2x USB 2.0 high-speed host + 1x USB 2.0 full-speed OTG
Up to 135 I/O ports with interrupt capability
2x ADCs (up to 12-bit)
1x temperature sensor
1x Digital Filter for Sigma Delta Modulator (DFSDM) with 4 channels/2 filters, internal or external ADC/DAC reference VREF+
2x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2x 16-bit advanced motor control timers
10x 16-bit general-purpose timers (including 2 basic timers without PWM)
5x 16-bit low-power timers
Secure RTC
4 Cortex®-A7 system timers (secure, nonsecure, virtual, hypervisor)
2x independent watchdogs |
| 以太网 |
10/100 M or Gigabit Ethernet
GMAC IEEE 1588v2, MII/RMII/GMII/RGMII |
2x 10/100 M or Gigabit Ethernet
GMAC IEEE 1588v2, MII/RMII/RGMII |
| 无线 |
Wi-Fi 5 dual-band 802.11a/b/g/n/ac 1x1 radio (up to 433.3 Mbps) with strong WPA3-Enterprise authentication/encryption, −40 °C to 85 °C (−40 °F to 185 °F) full temperature range; Bluetooth® 5.2 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy) |
|
| 工作温度 |
工业：-40 °C至85 °C（-40 °F至185 °F）；取决于使用情况和外壳/系统设计 |
| 储存温度 |
-50 °C 至 125 °C (-58 °F 至 257 °F) |
| 相对湿度 |
5% 至 90%（无冷凝） |
| RADIO APPROVALS* |
美国、加拿大、欧盟、日本、澳大利亚/新西兰、巴西、墨西哥 |
| EMISSIONS/ IMMUNITY/ SAFETY* |
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548
FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024
EN 301 489-3, Safety (IEC 62368-1); visit product certifications for latest updates |
| DESIGN VERIFICATION* |
温度IEC 60068-2-1、IEC 60068-2-2、IEC 60068-2-78；振动/冲击：IEC 60068-2-6、IEC 60068-2-64、IEC 60068-2-27、HALT |

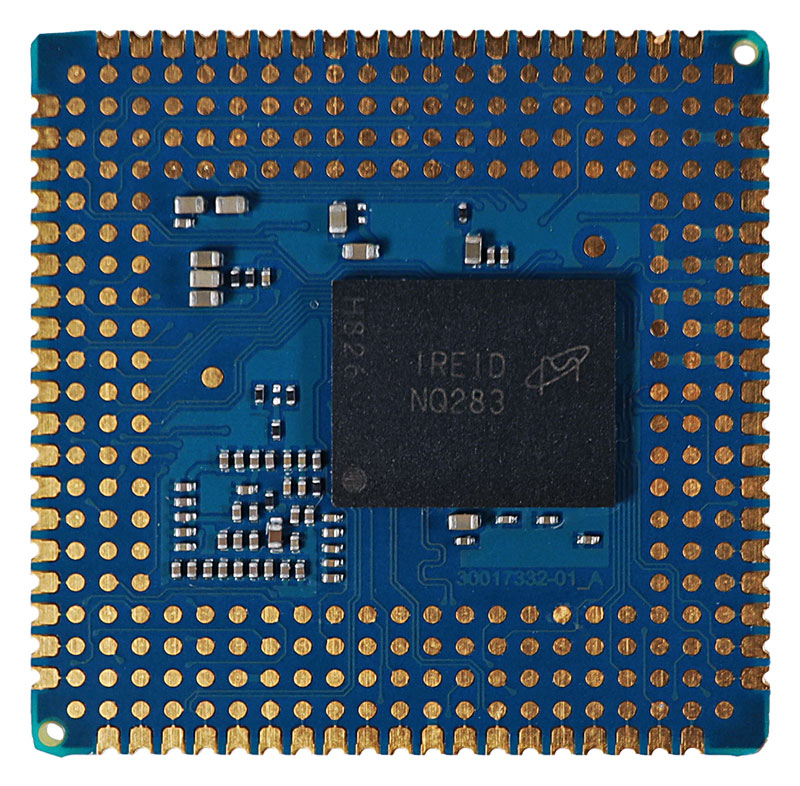

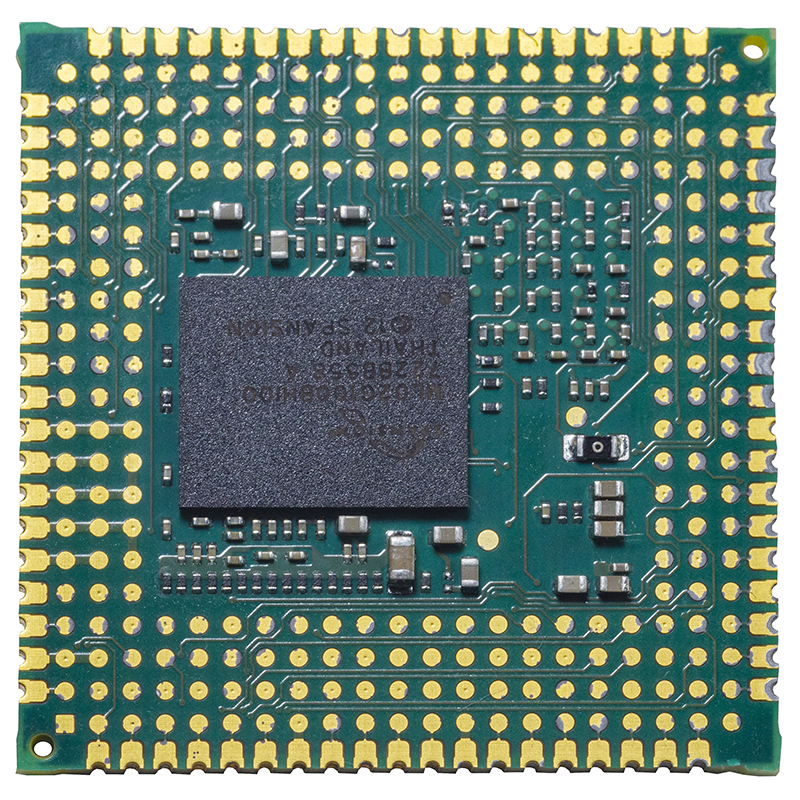

| 安装/针数 |
通用 Digi SMTplus® 表面贴装基底面，使用 76 焊盘边缘蓖状焊盘（1.27 毫米间距）或 245 焊盘 LGA（1.27 毫米间距）选项 |
| 机械尺寸 |
29 毫米 x 29 毫米 x 3 毫米（1.14 英寸 x 1.14 英寸 x 0.12 英寸） |
| 产品保修 |
3 年 |
