Digi ConnectCore 6UL

基于 NXP i.MX6 UL 的智能互联嵌入式系统级模块，采用邮票大小的外形，支持全套 Linux 软件

印章大小、安全、互联的模块化系统平台
NXP i.MX6UL，Cortex-A7，频率 528 MHz
256 MB / 512 MB / 1 GB NAND 闪存，256 MB / 512 MB / 1 GB DDR3
正在申请专利的小尺寸 Digi SMTplus™ 外形设计
集成 Digi 微控制器辅助功能™，可实现 2.5 µA 超低功耗模式
预认证 802.11a/b/g/n/ac + Bluetooth® 5 选项
集成双 10/100 以太网连接
Digi TrustFence®嵌入式设备安全框架
免版税嵌入式 Linux® 软件平台
Digi WDS提供交钥匙开发服务

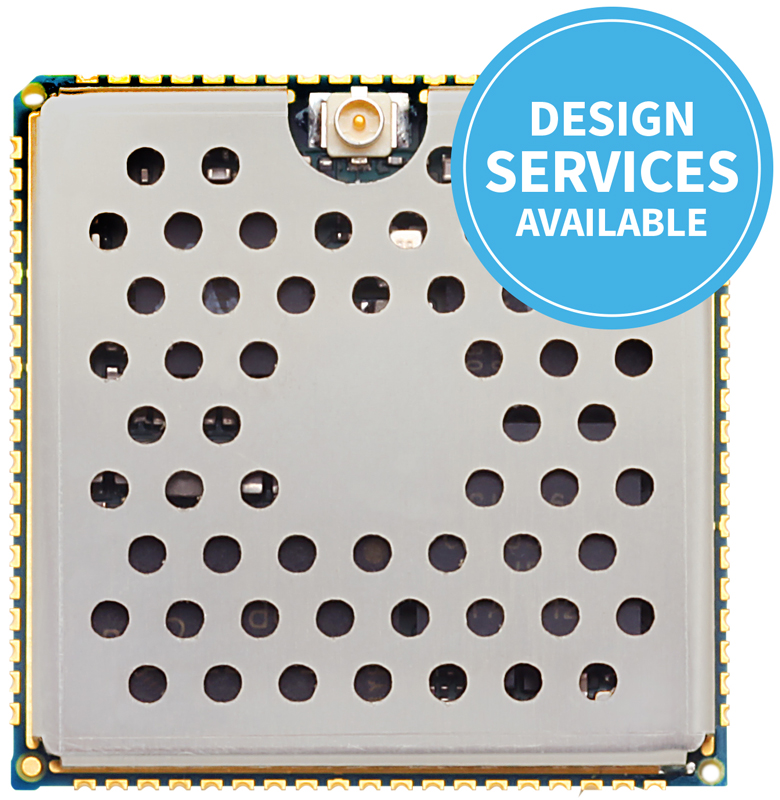

The Digi ConnectCore® 6UL module delivers a secure and extremely cost-effective connected System-on-Module platform that is slightly bigger than a postage stamp.

Its patent-pending Digi SMTplus™ surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces.

Built on the NXP i.MX6UL UltraLite application processor, the module is the intelligent communication engine for today’s secure connected devices. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.

Embedded device security is a critical design aspect for the growing number of connected applications (“IoT”) and the ConnectCore 6UL removes the implementation barriers by providing you with Digi TrustFence, a fully integrated secure module platform with complete Linux software support.

Smallest Size and Without Compromise

Smallest form factor. Lowest power. Wired or wireless. Pre-certified. The one i.MX6UL UltraLite SOM platform solution for all your connected devices.

Smallest Size and Without Compromise

Digi SMTplus™ for Design and Manufacturing Flexibility

Patent-pending Digi SMTplus form factor for optimized build/cost

Ultra-compact size of 29 x 29 mm with reliable low-profile mounting
Simplified and cost-optimized design and manufacturing flexibility
- 245-pad LGA (universal), or 76-pad (simple) castellated edge vias
- Reduced carrier board layer count for simpler applications
- No board connector cost, no board connector supply dependency
Simplified edge castellations (~76) only,
or versatile LGA (~245 @ 1.27 mm pitch) for design flexibility

Designed for automated pick-and-place

Highly cost-effective manufacturing in low and high volume applications
Castellated edge vias also allow manual prototyping placement

Common footprint

Highly cost-effective manufacturing in low and high volume applications
Castellated edge vias also allow manual prototyping placement

利用 Digi TrustFence 构建安全的联网嵌入式设备

信任围栏

设备安全是每个联网设备的关键设计环节。ConnectCore 6UL 将安全模块平台与完整的嵌入式设备安全软件框架相结合。现在就构建产品，为您和您的客户提供现在和未来的安全产品平台。

托管设备安全软件框架
U-Boot 和 Linux 平台集成
透明且面向未来的架构
零实施工作量

了解更多

i.MX 6UltraLite

最省电、成本最低、体积最小的 i.MX6 系列工业处理器

Built on the NXP i.MX6UL application processor, the ConnectCore 6UL is the intelligent communication engine for today’s secure connected devices in industrial applications. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.

重点行业

医疗设备部件智能电网

下载数据表

用户手册和指南

机械图纸

Digi 产品集成

Digi WDS 工程师可以定制 Digi 硬件组件和软件产品，以加快产品上市时间。

无线设计服务

相关产品

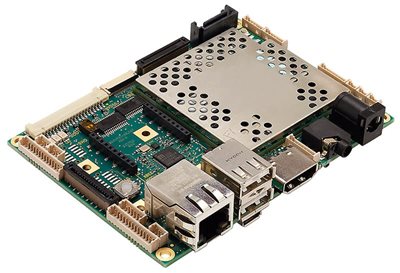

Digi ConnectCore 6UL SBC Pro

Digi ConnectCore 6N SBC

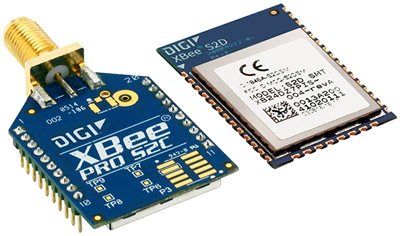

Digi XBee Zigbee

套件
	Digi ConnectCore 6UL 开发套件	CC-WMX6UL-KIT	如何购买


Digi ConnectCore 6UL - 528 MHz，工业级温度，1 GB SLC NAND，1 GB DDR3，双通道 10/100 以太网，802.11a/b/g/n/ac，蓝牙® 5	CC-WMX-JN7A-NE	如何购买
ConnectCore 6UL - 528 MHz、工业级温度、512 MB SLC NAND、512 MB DDR3、双 10/100 以太网、802.11a/b/g/n/ac、蓝牙® 5	CC-WMX-JN69-NN	如何购买
Digi ConnectCore 6UL - 528 MHz、工业级温度、512 MB SLC NAND、256 MB DDR3、双通道 10/100 以太网、802.11a/b/g/n/ac、蓝牙® 5	CC-WMX-JN59-NN	如何购买
Digi ConnectCore 6UL - 528 MHz、工业级温度、256 MB SLC NAND、256 MB DDR3、双通道 10/100 以太网、802.11a/b/g/n/ac、蓝牙® 5	CC-WMX-JN58-NE	如何购买

SBC
	Digi ConnectCore 6UL SBC Pro	CC-SBP-WMX-JN58	如何购买
	Digi ConnectCore 6UL SBC Pro 1GB 闪存 1GB 内存	CC-SBP-WMX-JN7A	如何购买

配件
	LCD 应用套件，包括 10 英寸 WXGA（高分辨率）LCD 面板	CC-ACC-LCDH-10	如何购买


Digi ConnectCore 6UL - 528 MHz，工业级温度，1 GB SLC NAND，1 GB DDR3，双通道 10/100 以太网	CC-MX-JN7A-Z1	如何购买
ConnectCore 6UL - 528 MHz、工业级温度、512 MB SLC NAND、512 MB DDR3、双通道 10/100 以太网	CC-MX-JN69-ZN	如何购买
Digi ConnectCore 6UL - 528 MHz，工业级温度，256 MB SLC NAND，256 MB DDR3，双通道 10/100 以太网	CC-MX-JN58-Z1	如何购买

服务与支持
	Digi ConnectCore 云服务 Digi ConnectCore® 云服务使各行各业的原始设备制造商能够利用Digi ConnectCore 系统模块（SOM）创建具有远程控制面板、服务和应用功能的连接设备。		开始
	Digi ConnectCore 安全服务在产品发布后维护连接设备的安全性是一项挑战。Digi ConnectCore® 安全服务使客户能够确保产品安全。		开始
	支持服务获取部署、管理、连接、定制和增强 Digi 解决方案所需的帮助		开始
	无线设计服务 Digi 无线设计服务通过嵌入无线技术帮助企业解决业务问题，从而创造出创新的 M2M 产品		开始

规格	Digi ConnectCore 6UL
特点
应用处理器	NXP i.MX6UL-2, ARM® Cortex®-A7 at 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor and programmable smart DMA (SDMA) controller
存储器	256 MB / 512 MB / 1 GB NAND 闪存，256 MB / 512 MB / 1 GB DDR3
PMIC	NXP PF3000
VIDEO/GRAPHICS	2D Pixel Processing Pipeline (PXP) for color-space conversion, scaling, alpha-blending, and rotation, 8- /16- /18- /24-bit parallel LCD Display up to WXGA (1366x768), 8- /10- /16- /24-bit Parallel CSI with BT.656 support
SECURITY**	AIS-31 compliant TRNG, ECC/AES256/TDES/ RSA encryption/decryption co-processor, SHA-1/224/256, FameXE PKI co-processor with 4096-bit RSA,/544-bit ECC/ ECDSA support, Secure RTC, Secure JTAG, Secure Storage, Secure Key Management, SPA/DPA/DFA (power/timing/fault attack protection), Tamper Monitor, Digi TrustFence® Embedded Security Framework
外围设备/接口	1 x dedicated MMC 4.5/SD 3.0/SDIO Port (1-/2-4-bit), 2 x USB 2.0 OTG with PHY, 3x I2S/SAI, 1 x S/PDIF Tx/Rx, 2 x FlexCAN (2.0b), 4 x I2C, 4 x SPI, 7 x UART, 4 x Timer, 8 x PWM, 3 x Watchdog, 2 x 12-bit ADC (10 channels) with 4-wire/5-wire touch controller, up to 103 GPIOs
外部总线	16-bit address / up to 16-bit data (multiplexed and non-multiplexed modes)
以太网	Dual 10/100 Mbit Ethernet MAC + IEEE 1588
无线	802.11a/b/g/n/ac 1x1 (MCS 0-9), Bluetooth 5 with strong WPA2-Enterprise authentication/encryption for Wi-Fi connections
MCA™ MICROCONTROLLER ASSIST	Ultra-low power ARM® Cortex®-M0+, up to 48 MHz (NXP Kinetis KL03: KL03P24M48SF0)
工作温度	工业：-40 °C至85 °C（-40 °F至185 °F）；取决于使用情况和外壳/系统设计
储存温度	-50 °C 至 125 °C (-58 °F 至 257 °F)
相对湿度	相对湿度 5% 至 90%（无冷凝）
无线电认证	美国、加拿大、欧盟、日本、澳大利亚/新西兰、巴西
排放/抗扰度/安全	FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)
设计验证	温度IEC 60068-2-1、IEC 60068-2-2、IEC 60068-2-78；振动/冲击：IEC 60068-2-6、IEC 60068-2-64、IEC 60068-2-27、HALT
安装/针数	Common Digi SMTplus* surface mount footprint using 76-pad edge castellated pads (1.27 mm pitch) or 245-pad LGA (1.27 mm pitch) option
机械尺寸	29 mm x 29 mm x 3.5 mm (1.14 in x 1.14 in x 0.14 in)
功耗	Idle Mode (Linux up, no networking): 100 mA at 5V Idle Mode (Linux up, with 25% Wi-Fi transmit): 118 mA at 5V Standby Mode (w/memory refresh): 6 mA at 5V
ULTRA LOW-POWER MODES	Event Trigger Mode: 2.5 µA at 3V (i.MX6UL off, MCA LLS w/HS Comparator active) Scheduled Wake-Up Mode: 2.5 µA at 3V (i.MX6UL off, MCA LLS w/HS Comparator active)
MAXIMUM RADIO-FREQUENCY POWER	63.1 mW
OPERATING FREQUENCY BAND	2402 - 2480 MHz; 5.250 - 5.350 GHz; 5.470 - 5.725 GHz
产品保修	3 年

* Patent-Pending

** DIGI ConnectCore 6UL products have the cryptographic functions implemented only within the following: Digi TrustFence® Embedded Security Framework (cryptographic algorithms are implemented within Linux OS v. 4.1.38), Wi-Fi module (802.11a/b/g/n/ac) and Bluetooth 5 module. Cryptographic and other functions and abilities of Digi TrustFence® Embedded Security Framework are accelerated by embedded NXP i.MX6UL processor. The processor itself is not used as a separate cryptographic module and does not accomplish any cryptographic functions by itself.
