Digi ConnectCore 模块化系统 单板计算机 Development kits

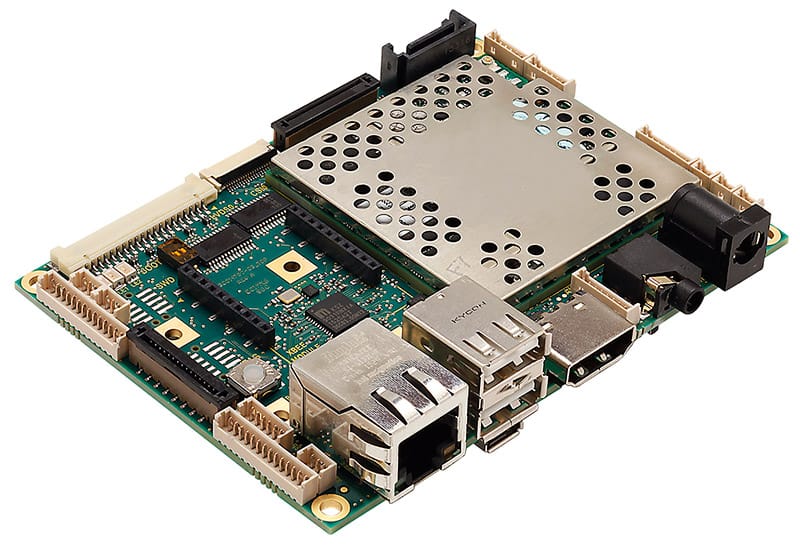

Digi ConnectCore 6N SBC

可靠、紧凑的 NXP i.MX6 SBC 系列,集成以太网、Wi-Fi、蓝牙、Digi XBee 和蜂窝连接选项


  • 紧凑型现成 SBC 系列
  • 可扩展功能和 i.MX6Quad/Dual 性能
  • 千兆以太网、预认证双频 Wi-Fi 5 和 Bluetooth® 5.0
  • 可用于蜂窝连接和Digi XBee®射频
  • 全套可用外设和接口,可定制选项
  • 设计灵活可靠
  • 支持 Windows® Embedded Compact、Yocto Project® Linux® 和 Android™ 软件平台
  • 提供工业工作温度

Digi ConnectCore 6N SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC) platform. It offers significantly reduced time-to-market by virtually eliminating the traditional risk, effort, and complexity of custom board designs without sacrificing flexibility or capabilities.

Built on the Digi ConnectCore 6N System-On-Module (SOM), it provides a common platform with scalable NXP® i.MX6 performance, pre-certified Wi-Fi 5 and Bluetooth 5.0 integration, Digi XBee® RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors, and reliability in harsh environments.

Leading and innovative features such as Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote OTA firmware updates, device management and health capabilities for the Internet of Things.

Digi also provides a true end-to-end offering with hardware customization, wireless design, and app development services.

信任围栏Yocto 项目蓝牙Wi-Fi 联盟恩智浦金牌合作伙伴由 AWS 提供支持安卓

Our goal was to create a next-generation on-board system with superior speed, interfaces and functionality. Digi provided a great solution to help us do so.

Ladislav Heglas, Chairman of the Board, EMTEST

阅读全文

Digi 产品集成

Digi WDS 工程师可以定制 Digi 硬件组件和软件产品,以加快产品上市时间。
规格 Digi ConnectCore 6N SBC
一般情况
应用处理器 On-board ConnectCore 6N multi-chip module with NXP i.MX6Quad/i.MX6Dual, Industrial (Dual  - 800 MHz) and Extended Commercial (Quad - 1.2 GHz) options
内存 4 GB eMMC flash, 1 GB DDR (64-bit)
图形 Multi-stream-capable HD video engine with 1080p60 decode, 1080p30 encode and 3D video playback in HD in high-performance families;
Superior 3D graphics performance with up to 4 shaders at 200 Mt/s w/ OpenCL support;
Separate 2D and/or Vertex acceleration engines for UI support;
Stereoscopic image sensor support for 3D imaging
安全 RNG、TrustZone、密码、安全控制器、安全 RTC、安全 JTAG、电子保险丝 (OTP)
Displays 1x HDMI (Type A);
2x LVDS with backlight control and I2C touch interface (Hirose DF14A-20P-1.25H);
1x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A);
1x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI)
照相机 1x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A);
1x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410);
1x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI)
USB 2.0 2x USB Host (Dual Type A),
1x USB OTG (Micro AB),
1x USB Host (Molex 53047-0610)
Audio 1x Line-In (3.5 mm stereo jack, CUI SJ1-3515-SMT);
1x Line-In, 1 x Line-Out, 1 x Mic-In (Molex 53047-0810);
On-board NXP SGTL5000 audio codec
Console (RS232) Molex 53047-0310
SATA 3.0 3M 5607-5102-SH
Micro-SIM
PCI Express Mini Card Foxconn AS0B226-S68Q-7H;
Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals;
Supports mounting of half-size and full-size PCI Express Mini Cards
Boot Configuration eMMC / SD / SATA
XBee Socket Samtec MMS-110-01-L-SV
无线网络 802.11a/b/g/n/ac
蓝牙 蓝牙 5.0
天线连接器 1x U.FL / 2x U.FL
Gigabit Ethernet RJ-45, with two LEDs for link/speed/activity
CAN 总线 2x FlexCAN (Molex 53047-0610)
GPIO/I2C/SPI/UART 1x GPIO (8 x i.MX GPIOs + 4 Kinetis GPIOs, Molex 53047-1410);
1x I2C (Molex 53047-0310), 1x SPI (Molex 53047-0610);
3x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410)
调试 1x JTAG for i.MX6 (FCI 20021111-00010T4LF);
1x SWD for Digi MCA (FCI 20021111-00010T4LF);
Headers populated on development units only;
Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL)
Power Button Power on, power off, sleep, wake-up
Reset Button
User LEDs 1x Red, 1x Yellow, 1x Green
Coin Cell Connector Molex 53047-0210
电源电压 5 V @ 3.2 A (typical, depending on use-case)
Power Supply Connector Main power supply via 2 mm locking barrel connector
工作温度 Ext. Commercial: -20° C to 70° C (-4° F to 158° F) / Industrial: -40° C to 85° C (-40° F to 185° F)
存储温度 摄氏 -50 度至 125 度(华氏 -58 度至 257 度)
相对湿度 5% 至 90%(无冷凝)
无线电认证 美国、加拿大、欧盟、日本、澳大利亚/新西兰、巴西
发射/抗扰/安全 FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3:
ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada);
RSS-210 Issue 5 Section 6.2.2(o), EN 300 328;
EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1)
产品保修 1 年
