Digi ConnectCore MP2

即将推出

Versatile, secure, wireless system-on-module with NPU and ISP for edge AI and computer-vision applications and complete Linux support in Digi SMTplus form factor

工业级、可扩展、嵌入式 SOM 平台
NPU and ISP providing edge AI and computer-vision capabilities
预认证双频 Wi-Fi 5 (802.11ac) 和 Bluetooth® 5.2
支持硬件和软件的电源管理
Digi SMTplus® form factor (30 x 30 mm) for ultimate reliability
Seamless cellular modem and Digi XBee® integration
Digi ConnectCore® Cloud Services for remote access, device management, OTA firmware updates and IoT application enablement
Digi Embedded Yocto Linux and Digi TrustFence® security support
Digi WDS提供交钥匙开发服务

Digi ConnectCore® MP2 is a versatile, secure and cost-effective wireless system-on-module (SOM) designed for industrial applications and smart connected devices. STMicroelectronics’ STM32MP25 adds a neural processing unit (NPU) and image signal processor (ISP) for edge AI and computer vision applications. The fully integrated wireless connectivity, time-sensitive networking (TSN) and the compact SMTplus® form factor (30 x 30 mm) make it ideal for small portable devices and Industry 4.0. The SOM is designed for maximum power efficiency to support battery powered applications.

Digi ConnectCore MP25 offers industrial-rated design for longevity in demanding 24/7/365 operation and 10+ year product lifecycles, backed by Digi’s industry-leading 3-year warranty. Digi Embedded Yocto® combined with powerful Digi ConnectCore Cloud Services and Digi ConnectCore Security Services, makes Digi ConnectCore MP25 a complete solution for creating and maintaining secure connected devices throughout their lifecycle.

The scalable Digi ConnectCore MP2 module family provides a wide range of wireless connectivity options with pre-certified 802.11ac Wi-Fi 5 and Bluetooth 5.2, along with PCIe Gen2, USB 3.0, CAN-FD and Gigabit Ethernet with TSN support. In addition, it includes high end graphics capabilities such as a 3D GPU, video encoder and decoder (VPU), high resolution MIPI, LVDS or parallel display interfaces as well as a MIPI camera port with a image signal processor (ISP).

Embedded device security is a critical design aspect for connected IoT applications. Digi ConnectCore SOM solutions provide built-in security with Digi TrustFence®, a fully integrated IoT security framework simplifying the process of securing connected devices. Digi ConnectCore Cloud Services, Digi ConnectCore Security Services and Expert Support provide additional capabilities for development, deployment and maintenance throughout the entire product lifecycle.

Our decades of embedded experience and millions of deployed devices tell our story; Digi is a trusted solutions provider dedicated to simplifying the way OEMs design, build, deploy and maintain secure connected products. Digi Wireless Design Services (WDS) is an engineering team that provides additional integration support, certification assistance, and custom design and build services to get your products to market smarter and faster.

Edge Vision AI Alliance ST 授权合作伙伴

下载数据表

Digi 产品集成

Digi WDS 工程师可以定制 Digi 硬件组件和软件产品，以加快产品上市时间。

无线设计服务

从套件开始

完整的开发平台

DigiIoT 开发套件包括用于快速原型设计、测试和开发无线应用的电路板、模块和配件。

查看嵌入式套件

相关产品

Digi ConnectCore MP1

Digi ConnectCore 93

Digi ConnectCore 云服务

Digi ConnectCore 安保服务

套件

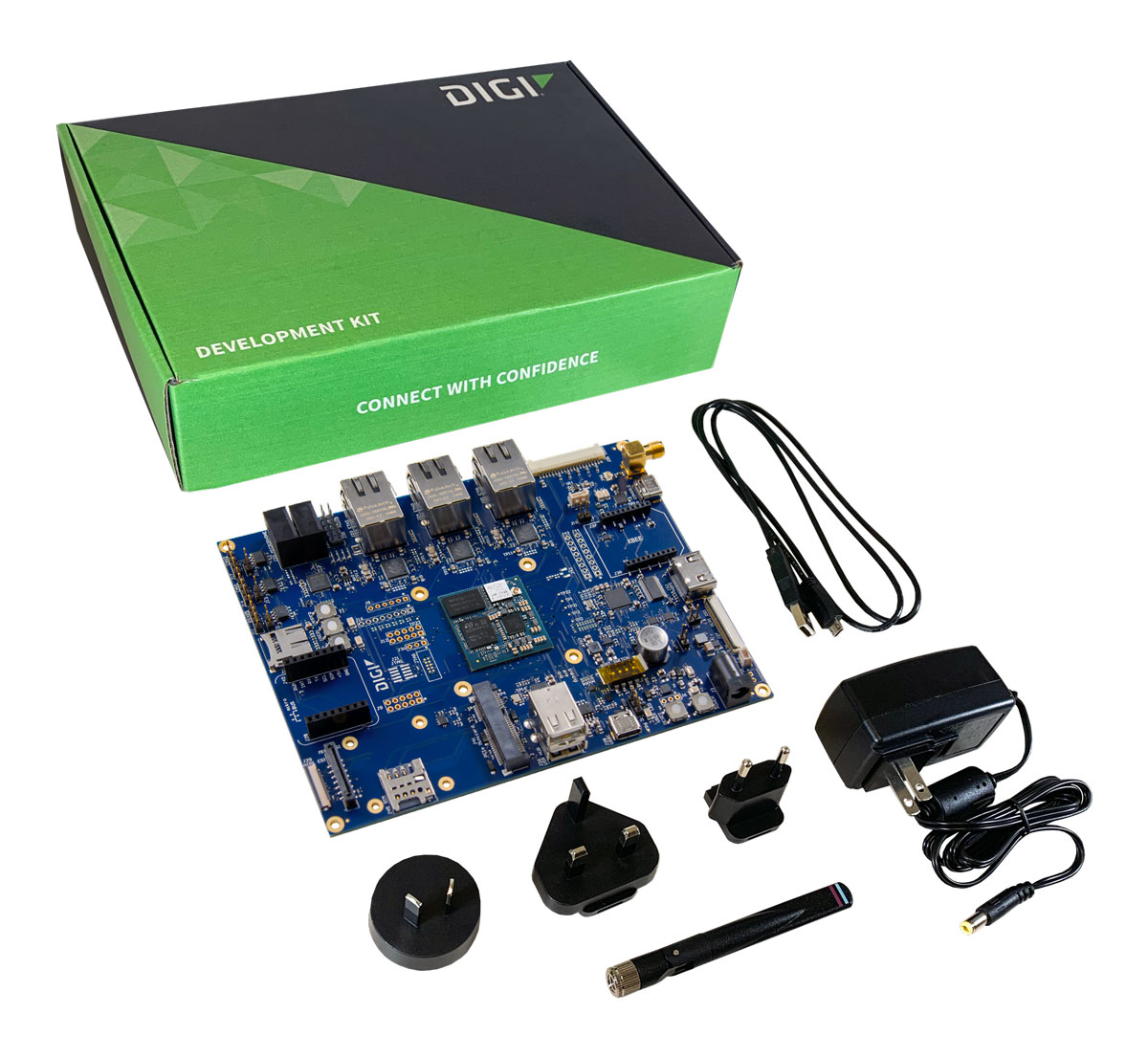

	即将推出 Digi ConnectCore MP255 Development Kit Digi ConnectCore® MP255 development board with SOM 控制台端口电缆双频无线天线电源和附件参考设计和在线文档	CC-WMP255-KIT	联系我们

模块

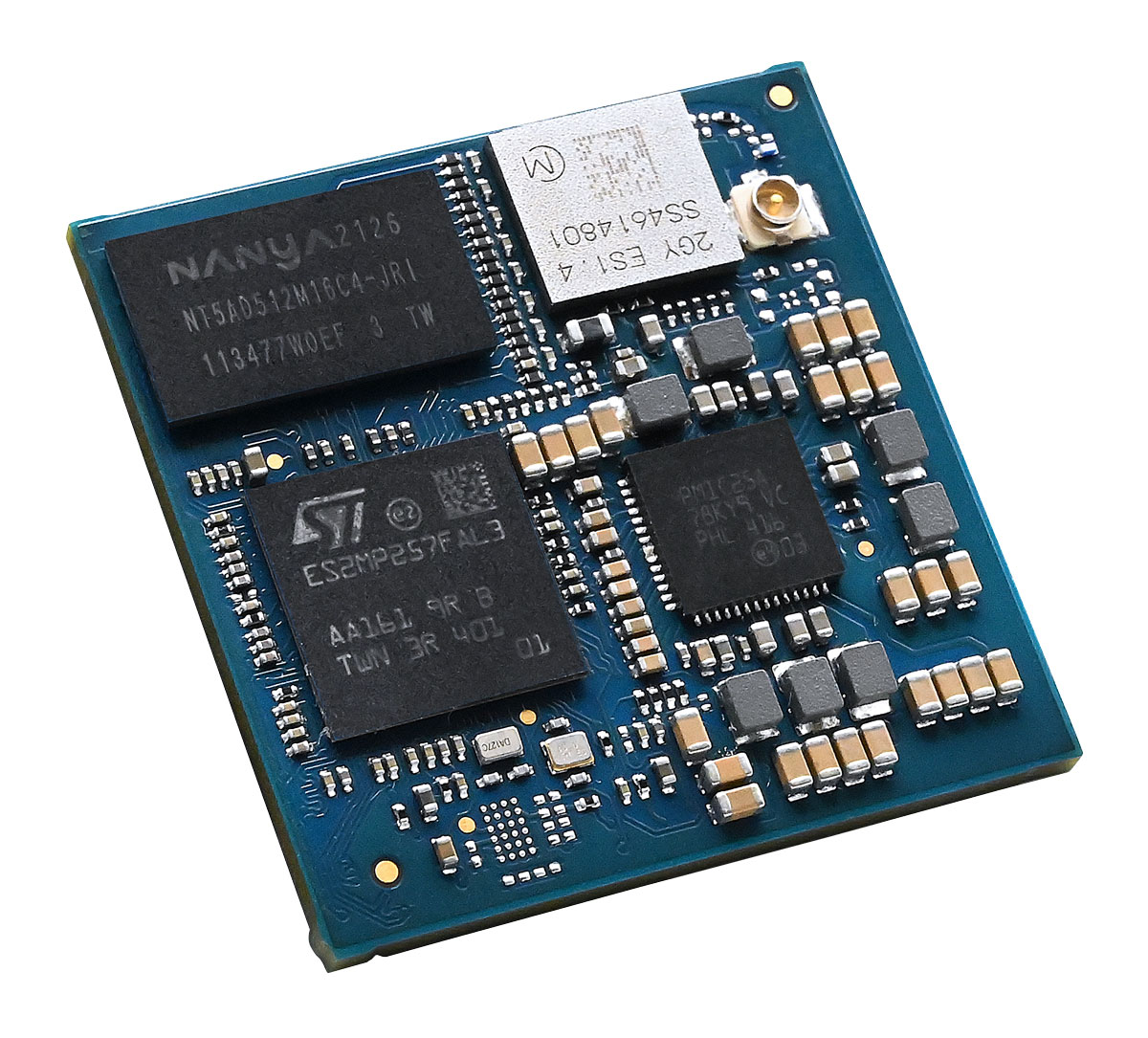

	即将推出 Digi ConnectCore MP255 Secure Wireless System-On-Module STMicroelectronics® STM32MP255F, Arm® 64-bit dual Cortex®-A35 at 1.5 GHz Cortex-M33 at 400 MHz with FPU/MPU Cortex M0+ at 200 MHz in SmartRun domain 3D GPU, ISP, NPU 1 GB DDR4, 8 GB eMMC, Secure boot Indusrial operating temperature: −40 to 85 °C (−40 to 185 °F) 2x Gigabit Ethernet (+ 1x Gigabit Ethernet option for 2+1 switch) Wi-Fi 5 dual-band 802.11a/b/g/n/ac 蓝牙® 5.2（基本速率、增强数据速率和低功耗蓝牙）	CC-WST-J17D-NK	联系我们
	即将推出 Digi ConnectCore MP255 Secure Ethernet System-On-Module STMicroelectronics® STM32MP255F, Arm® 64-bit dual Cortex®-A35 at 1.5 GHz Cortex-M33 at 400 MHz with FPU/MPU Cortex M0+ at 200 MHz in SmartRun domain 3D GPU, ISP, NPU 1 GB DDR4, 8 GB eMMC, Secure boot Indusrial operating temperature: −40 to 85 °C (−40 to 185 °F) 2x Gigabit Ethernet (+ 1x Gigabit Ethernet option for 2+1 switch)	CC-ST-J17D-ZK	联系我们

配件
	LCD 应用套件，包括 10 英寸 WXGA（高分辨率）LCD 面板	CC-ACC-LCDH-10	如何购买

服务与支持
	Digi ConnectCore 云服务 Digi ConnectCore® 云服务使各行各业的原始设备制造商能够利用Digi ConnectCore 系统模块（SOM）创建具有远程控制面板、服务和应用功能的连接设备。		开始
	Digi ConnectCore 安全服务在产品发布后维护连接设备的安全性是一项挑战。Digi ConnectCore® 安全服务使客户能够确保产品安全。		开始
	支持服务获取部署、管理、连接、定制和增强 Digi 解决方案所需的帮助		开始
	无线设计服务 Digi 无线设计服务通过嵌入无线技术帮助企业解决业务问题，从而创造出创新的 M2M 产品		开始

规格	Digi ConnectCore® MP255 SOM
应用处理器	STMicroelectronics STM32MP255F, Arm® 64-bit dual Cortex®-A35 at 1.5 GHz; Cortex-M33 at 400 MHz with FPU/MPU; Cortex M0+ at 200 MHz in SmartRun domain
存储器	Up to 128 GB Flash (eMMC™), up to 2 GB DDR4 (16-bit)
PMIC	STMicroelectronics Power Management IC — STPMIC25A
NPU / ISP	Neural Processing Unit (NPU) — VeriSilicon® at 900 MHz, 1.35 TOPS
视频/图形	3D GPU — VeriSilicon at 900 MHz; OpenGL® ES 3.2.8 — Vulkan 1.2; Open CL™ 3.0, OpenVX™ 1.3; up to 138 Mtriangle/s, 900 Mpixel/s; LCD-TFT controller, up to 24-bit digital RGB888; up to FHD (1920 x 1080) at 60 fps, 3 layers including a secure layer; YUV support, 90° output rotation; MIPI DSI®, 4x data lanes, up to 2.5 Gbit/s each; up to QXGA (2048 x 1536) at 60 fps; FPD-1 and OpenLDI JEIDA/VESA (LVDS), 1x link of 4x data lanes, up to 1.1 Gbit/s each, up to 1080p at 60 fps
摄像机	Camera interface #1 (5 Mpixels at 30 fps); MIPI CSI-2®, 2x data lanes up to 2.5 Gbit/s each; 8- to 16-bit parallel, up to 120 MHz; RGB, YUV, JPG, RawBayer with basic ISP, downscaling, cropping, 3-pixel pipelines; Camera interface #2 (1 Mpixels at 15 fps); 8- to 14-bit parallel, up to 80 MHz; RGB, YUV, JPG, cropping; Digital parallel interface up to 16-bit input or output
安全	Secure boot, TrustZone® peripherals, up to 8 tamper input pins + 8 active tamper output pins, 1x CRC calculation unit, 2x cryptographic processors, hardware acceleration with DMA support; environmental monitors, display secure layers; Encryption/decryption: AES-128/192/256, DES/TDES; secure AES-256 with SCA; RSA, ECC, ECDSA with SCA; HASH (SHA-1, SHA-224, SHA-256, SHA3), HMAC; true random number generator; “on-the-fly” DDR encryption/decryption (AES-128); “on-the-fly” OTFDEC Octo-SPI flash memory decryption (AES-128); Complete resource isolation framework; Digi TrustFence embedded security framework
外设/接口	8x I2C FM+ (1 Mbit/s, SMBus/PMBus®); 4x I3C (12.5 Mbit/s); 5x UART + 4x USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI slave); 8x SPI (50 Mbit/s, including 3 with full duplex I2S audio class accuracy via internal audio PLL or external clock); 4x SAI (stereo audio: I2S, PDM, SPDIF Tx); SPDIF Rx with 4 inputs; 3x SDMMC up to 8-bit, out of which one is used for eMMC and one for Wi-Fi; up to 3x CAN controllers supporting CAN FD protocol, out of which one supports time-triggered CAN (TTCAN); 1x USB 2.0 high-speed Host with embedded 480 Mbits/s PHY; 1x USB 2.0/3.0 high-speed/SuperSpeed dual role data with embedded 480 Mbits/s and 5 Gbits/s PHY (5 Gbits/s PHY shared with PCI Express); 1x USB Type-C® Power Delivery control with two CC lines PHY; 1x PCI Express with embedded 5 Gbits/s PHY (PHY shared with USB 3.0 SuperSpeed); up to 172 secure I/O ports with interrupt capability; up to 6 wake-up inputs; up to 8 tamper input pins + 8 active tamper output pins; 3x ADCs with 12-bit max. resolution (up to 5 Msps each, up to 24 channels); Internal temperature sensor; 1x multifunction digital filter (MDF) with up to 8 channels/8 filters; 1x audio digital filter with 1 filter and sound activity detection; Internal or external ADC reference VREF+; 4x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; 3x 16-bit advanced motor control timers; 10x 16-bit general-purpose timers (including 2 basic timers without PWM); 5x 16-bit low-power timers; Secure RTC with subsecond accuracy and hardware calendar; up to 2x 4 Cortex-A35 system timers (secure, non-secure, virtual, hypervisor); 2x SysTick M33 timer (secure, non-secure); 1x SysTick M0+ timer; 7x watchdogs (5x independent and 2x window)
以太网	2x Gigabit Ethernet with external PHY interfaces, optional 3x Gigabit Ethernet GMAC interfaces and 2+1 switch with STM32MP257F MPU; TSN, IEEE 1588v2 hardware, MII/RMII/RGMII
无线	Wi-Fi 5 dual-band 802.11a/b/g/n/ac 1x1 radio (up to 433.3 Mbps) with strong WPA3-Enterprise authentication/encryption; −40 °C to 85 °C (−40 °F to 185 °F) full temperature range; Bluetooth 5.2 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy)
工作温度	工业：-40 °C至85 °C（-40 °F至185 °F）；取决于使用情况和外壳/系统设计
储存温度	-50 °C 至 125 °C (-58 °F 至 257 °F)
相对湿度	5% 至 90%（无冷凝）
RADIO APPROVALS*	美国、加拿大、欧盟、日本、澳大利亚/新西兰、巴西、墨西哥
EMISSIONS/ IMMUNITY/ SAFETY*	FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548 FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024 EN 301 489-3, Safety (IEC 62368-1); visit product certifications for latest updates
DESIGN VERIFICATION*	温度IEC 60068-2-1、IEC 60068-2-2、IEC 60068-2-78；振动/冲击：IEC 60068-2-6、IEC 60068-2-64、IEC 60068-2-27、HALT
安装/针数	Digi SMTplus (30 mm x 30 mm) surface mount footprint using 333-pad LGA (1.27 mm pitch) with option for simple carrier board designs supporting subset of interfaces
机械尺寸	30 mm x 30 mm x 3 mm (1.18 in x 1.18 in x 0.12 in)
产品保修	3 年
