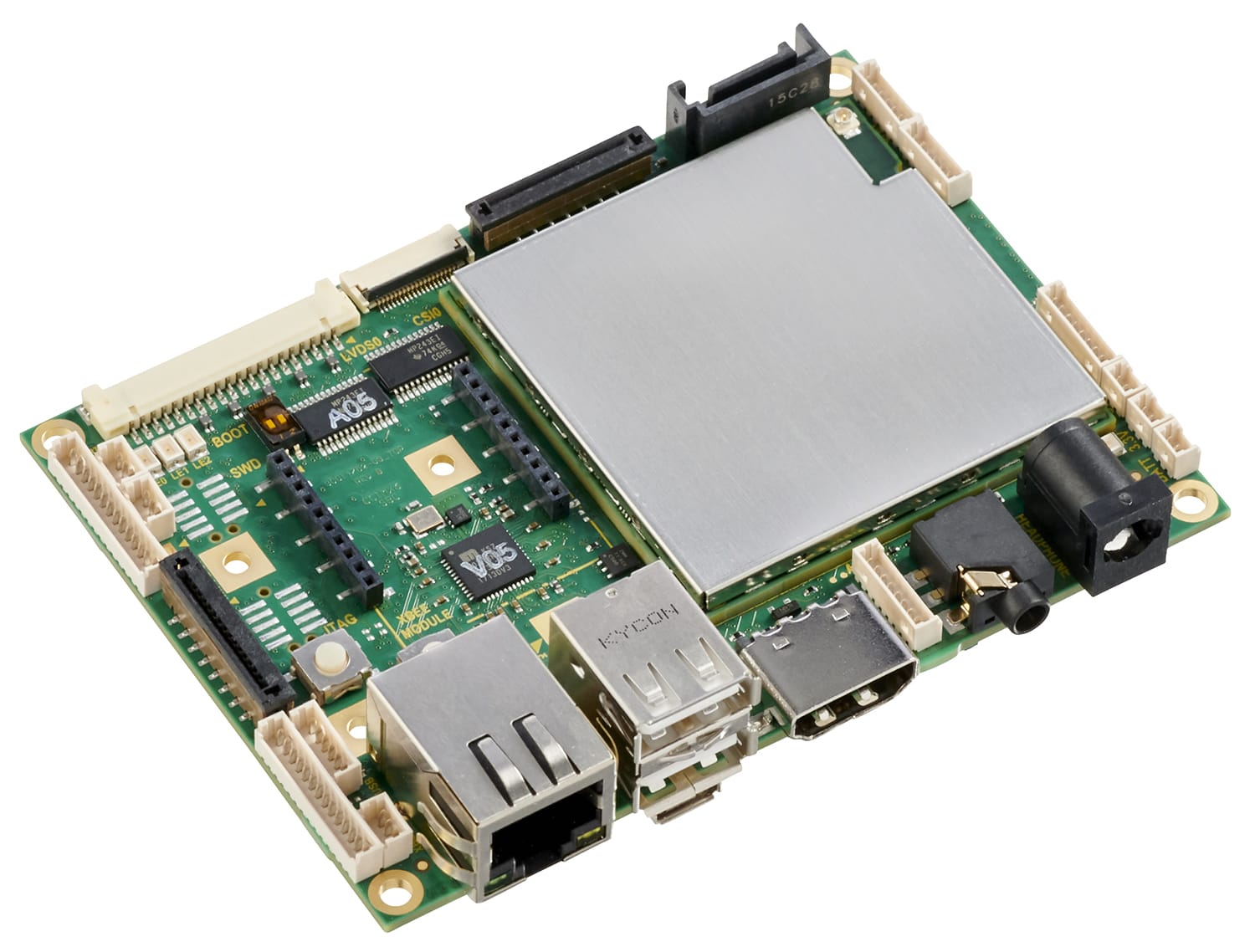

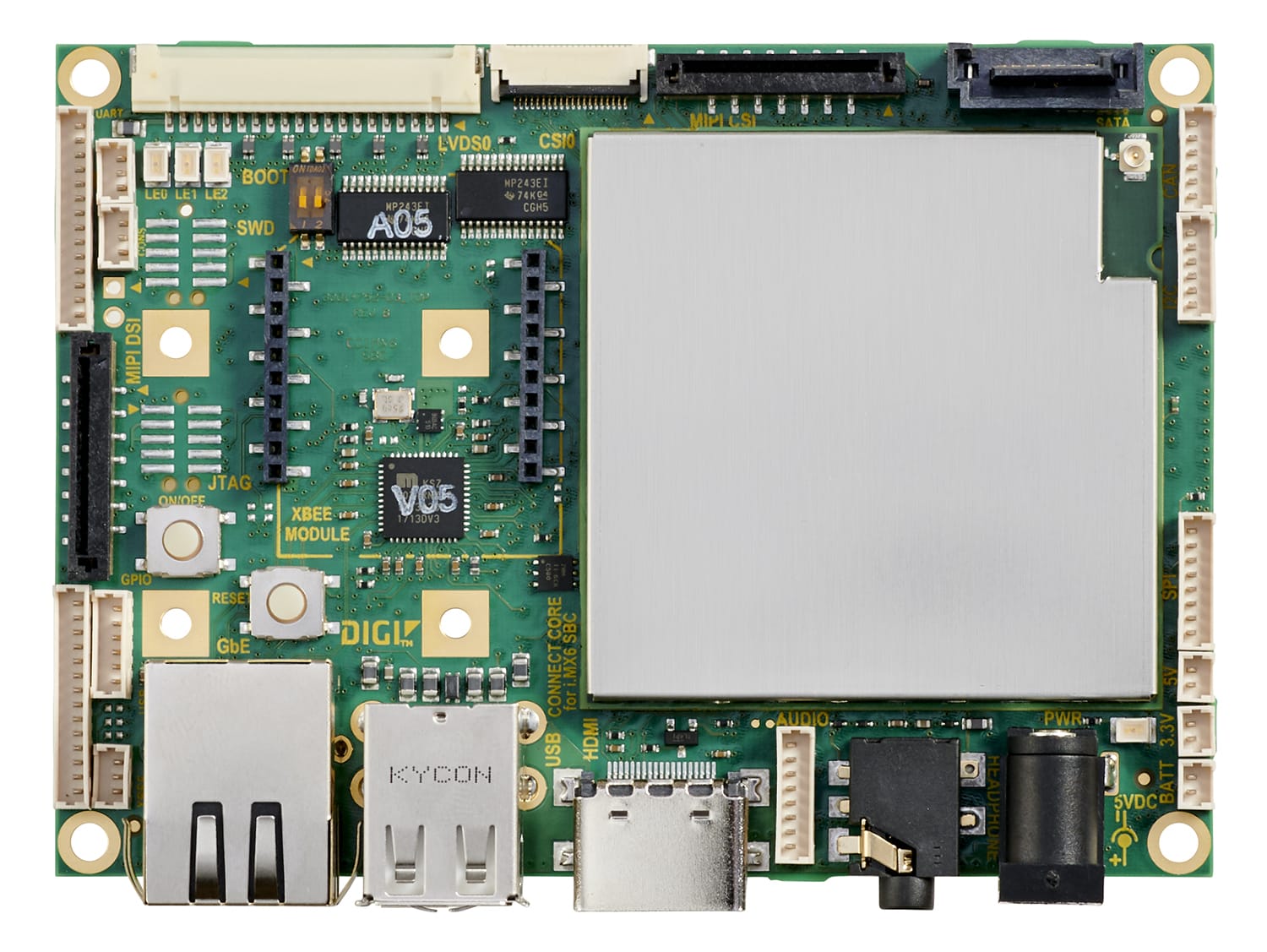

Digi ConnectCore 6+ SBC

基于 NXP i.MX6Plus 的表面贴装模块解决方案，具有可扩展的四核性能和集成无线连接功能


  • 紧凑型现成 SBC
  • 可扩展功能和 i.MX6Plus 性能
  • 千兆位以太网和预认证双频 802.11ac + 蓝牙® 5
  • 与蜂窝调制解调器和 Digi XBee® 无缝集成
  • 全套可用外设和接口，并提供定制选项
  • 设计灵活可靠
  • 支持 Yocto Linux 和 Android 软件平台
  • 提供工业工作温度
如何购买 支持

Digi ConnectCore 6+ SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC). It offers significantly reduced time to market by virtually eliminating the traditional risk, effort and complexity of custom board designs without sacrificing flexibility or capabilities.

Built on the Digi ConnectCore 6+ module, it provides a common platform with scalable NXP i.MX6Plus performance, pre-certified Bluetooth® 5 and Wi-Fi integration, Digi XBee RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors and reliability in harsh environments.

Leading and innovative features such as the Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote management and device health capabilities for the Internet of Things.

利用 Digi TrustFence 构建安全的联网嵌入式设备

信任围栏

设备安全是每个联网设备的关键设计环节。ConnectCore 6 将安全模块平台与完整的嵌入式设备安全软件框架相结合。现在就构建产品，为您和您的客户提供现在和未来的安全产品平台。

  • 托管设备安全软件框架
  • U-Boot 和 Linux 平台集成
  • 透明且面向未来的架构
  • 零实施工作量

了解更多

信任围栏Yocto 项目蓝牙Wi-Fi 联盟恩智浦金牌合作伙伴由 AWS 提供支持安卓

下载数据表下载数据表 用户手册用户手册和指南 用户手册用户手册和指南 相关产品相关产品 添加到比较添加到比较

Digi 产品集成

Digi WDS 工程师可以定制 Digi 硬件组件和软件产品，以加快产品上市时间。

相关产品

Digi ConnectCore 6+ Digi ConnectCore 6+ Digi ConnectCore 6UL SBC Pro Digi ConnectCore 6UL SBC Pro Digi ConnectCore 8X SBC Pro Digi ConnectCore 8X SBC Pro Digi ConnectCore 8X Digi ConnectCore 8X
规格 Digi ConnectCore® 6+ SBC
应用处理器 NXP i.MX6Plus encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.0 GHz with 1 MB of L2 cache, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity
存储器 8 GB eMMC, 2 GB DDR (64-bit)
PMIC Dialog DA9063
图形 LVDS、MIPI 显示端口、MIPI 摄像端口和 HDMI v1.4
安全 RNG、TrustZone、密码、安全控制器、安全 RTC、安全 JTAG、电子保险丝 (OTP)
外围设备/接口 MMC 4.4/SD 3.0 x3MMC 4.4/SDXC, UART x5 (5 Mbps), MIPI HSI, S/PDIF Tx/Rx, I2C x3, SPI x5, ESAI, I2S/SSI x3, FlexCAN x2, MLB150 + DTCP, S-ATA and PHY (3 Gbps), USB2 OTG and PHY, USB 2.0 Host and PHY, USB 2.0 HSIC Host x2, PWM, 3.3V GPIO, Keypad, PCIe 2.0 (x1 lane), HDMI and PHY, MIPI DSI, MIPI CSI2, 20-bit CSI, 24-bit RGB, LVDS (x2), RTC, External address/data bus, Watchdog, Timers, JTAG
外部总线 26 位地址/最多 32 位数据（多路复用和非多路复用模式）
DISPLAYS 1 x HDMI (Type A)
2 x LVDS with backlight control and I2C touch interface (HIROSE DF14A-20P-1.25H)
1 x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A)
1 x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI)
摄像机 1 x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A)
1 x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410)
1 x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI)
USB 2.0 2 x Ux USB OTG (Micro AB); 1 x USB Host (Molex 53047-0610)
音频 1 x Line-In
(3.5 mm stereo jack, CUI SJ1-3515-SMT) 1 x Line-In, 1 x Line-Out, 1 x Mic-In
(Molex 53047-0810) On-board NXP SGTL5000 audio codec
CONSOLE (RS-232) 是
SATA 3.0 是
MICRO-SIM 是
PCI EXPRESS 迷你卡 Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals
Supports mounting of half-size and full-size PCI Express Mini Cards
BOOT CONFIGURATION eMMC / SD / SATA
DIGI XBEE SOCKET 是
无线网络 802.11a/b/g/n/ac
蓝牙 蓝牙 5
ON-MODULE MICROCONTROLLER Digi Microcontroller Assist (MKL14Z32VFT4)
天线连接器 1 x U.FL (on SOM)
以太网 Gigabit Ethernet
CAN BUS 2 x FlexCAN (Molex 53047-0610)
GPIO/I2C/SPI/UART 1 x GPIO (8 x i.MX GPIOs + 4 MCA GPIOs - Molex 53047-1410)
1 x I2C (Molex 53047-0310), 1 x SPI (Molex 53047-0610)
3 x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410)
DEBUG 1 x JTAG for i.MX6 (FCI 20021111-00010T4LF)
1 x SWD for MCA (FCI 20021111-00010T4LF)
Headers populated on development units only, Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL)
POWER BUTTON Power on, power off, sleep, wake-up
RESET BUTTON 是
USER LEDS 1 x Red, 1 x Yellow, 1 x Green
COIN CELL CONNECTOR 是
电源电压 5 V @ 3.2 A (typical, depending on use-case)
POWER SUPPLY CONNECTOR Main power supply via 2mm locking barrel connector
工作温度 摄氏 -40 度至 85 度（华氏 -40 度至 185 度）
储存温度 摄氏 -50 度至 125 度（华氏 -58 度至 257 度）
相对湿度 5% 至 90%（无冷凝）
无线电认证 美国、加拿大、欧盟、澳大利亚/新西兰
排放/抗扰度/安全 FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B,
VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o),
EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)
设计验证 温度IEC 60068-2-1、IEC 60068-2-2、IEC 60068-2-78
振动/冲击：IEC 60068-2-6、IEC 60068-2-64、IEC 60068-2-27、HALT
机械尺寸 LGA-400，2 毫米间距，全屏蔽（热扩散）
Digi ConnectCore 6+ SBC 数据表 Digi ConnectCore 6+ SBC 数据表 基于恩智浦 i.MX6Plus 的解决方案，具有可扩展的四核性能和集成无线连接功能 查看 PDF Digi ConnectCore 6+ 数据表 Digi ConnectCore 6+ 数据表 基于恩智浦 i.MX6Plus 的表面贴装模块解决方案，具有可扩展的四核性能和集成无线功能 查看 PDF
