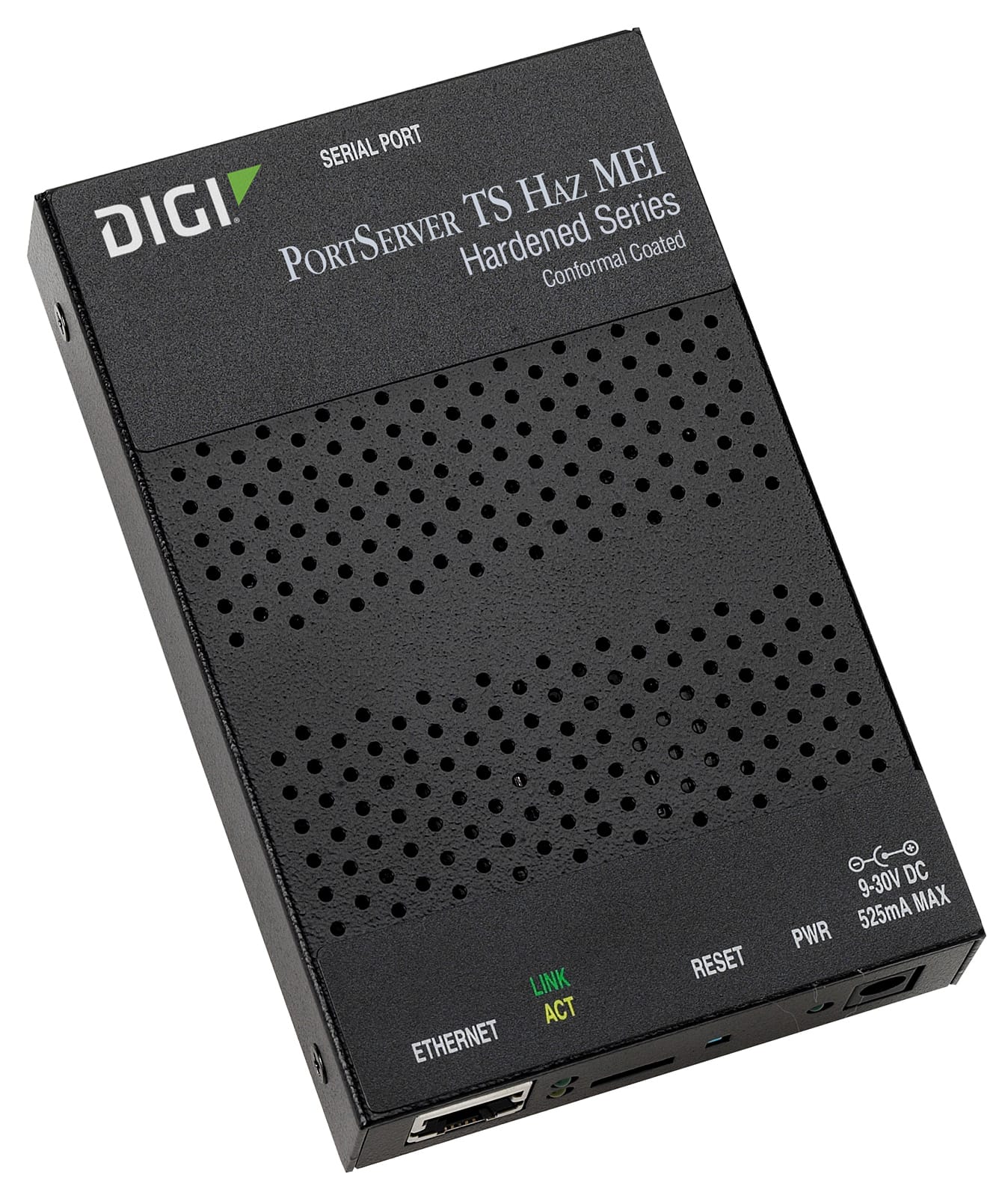

PortServer TS MEI 加固型

适用于室外高温环境的加固型串行服务器

室外扩展温度耐受性（-35° C 至 +74°C）
带保形涂层电路板的设备服务器
NEMA TS 2 认证，1 类 2 分区
1、2 或 4 个可通过开关选择的串行端口（RS-232/422/485）

如何购买支持

The PortServer® TS MEI Hardened family of serial servers is designed for serial port expansion where environmental hazards demand extended safety features and operating tolerances. Extended operating temperature (-35° C to +74° C), conformal coated circuit board, NEMA TS 2 and Class 1 Div 2 certifications make these rugged serial servers ideal for use in outdoor applications. Digi's patented RealPort® COM port redirector creates a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

The PortServer TS H MEI model is designed for serial-to-Ethernet connectivity in utility plants, pipelines, traffic management facilities and other remote locations requiring extended operating temperatures.

Designed to meet NEMA TS 2 and other unique requirements in traffic management installations, the PortServer TS Hcc MEI* model is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters or any RS-232/422/485 serial device. Specialized features include conformal coated PCA for moisture and corrosion protection, screw terminal power connector for durable and reliable power feed, and extended operating temperature tolerance.

The PortServer TS Haz MEI serial server offers a conformal coated PCA, extended temperature tolerance and the ability to safely perform in flammable environments (Class 1, Division 2 certified). It is ideal for serial port expansion in factory automation and utility management (gas, electric and water) applications.

重点行业

工商业计量能源医疗设备部件工业需求响应交通运输数字油田游戏智能照明控制精准农业可再生能源智能电网储罐监测水与废水

下载数据表

用户手册和指南

相关产品

添加到比较

端口服务器 TS 4 H MEI
	端口服务器 TS 4 H MEI	70001919	如何购买

PortServer TS H MEI
	端口服务器 TS 1 H MEI	70001917	如何购买

PortServer TS H cc MEI
	PortServer TS 4^HccMEI	70002040	如何购买

PortServer TS MEI 加固型
电缆转适配器对照参考

规格	PortServer TS H MEI	PortServer TS H^cc MEI	PortServer TS Haz MEI
特点
管理层	HTTP/HTTPS, PPP, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
协议	UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support	UDP/TCP, Supports multiple unicasts, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support	UDP/TCP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support
软件	支持 Digi 的 Realport® COM 端口重定向器
安全	SSHv2, SSL/TLS
Extended Safety	不适用	Conformal coated circuit board, NEMA TS 2 compliant, Screw terminal connector for power	Conformal coated circuit board, Screw terminal connector for power, Ships in "Latency Mode & TCP Keepalive" setting
状态 LED	Link, Power, Activity, Status
操作系统	AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent
尺寸 (长 x 宽 x 深）	5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
重量	2.25 oz (64.00 g)
其他	Full modem and hardware flow control, Modem emulation, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration, Wall mount kit included		Full modem and hardware flow control, Modem emulation, Port buffering, RJ-45/DB-9F crossover adapter included for optional serial configuration
接口
串行
港口	1/2/4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD		4 RS-232/422/485 RJ-45 (switch-selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD
以太网
物理层	1 RJ-45 10/100 Mbps 10/100Base-T（自动感应）；全双工或半双工
电源要求
电源输入	9-30 伏直流	9-30 VDC @ 0.5 Amps max (screw terminal power)	9-30 VDC @ 0.5 Amps max (screw terminal power)
电源	12 VDC extended temperature power supply sold separately; Bare-wire “pigtail” power connector included	9-30 VDC @ 525 mA max	Optional 12 VDC extended temperature power supply sold separately
耗电量	典型值：4 W；最大值：6 W
Surge Protection	4 kV burst (EFT) per EN61000-4-4, 2 kV surge per EN61000-4-5
环境
工作温度	-35° C to +74° C (-31° F to 165° F)
存储温度	摄氏 -40 度至华氏 +85 度（华氏 -40 度至华氏 +185 度）
相对湿度	5% 至 95%（无冷凝）
以太网隔离	1500VAC min per IEEE802.3/ANSI X3.263
串行端口保护（ESD）	15 kV 人体模型
批准
安全	UL/CL60950, IEC60950, CB	Class 1 Division 2, UL/CL60950, IEC60950 & CB	Class 1 Division 2, UL/CL60950, IEC60950
排放物/污染	CE, FCC Part 15 (Class A), EN55024, EN55022 Class A, AS/NZS 3548, VCCI V-3/99 .05
