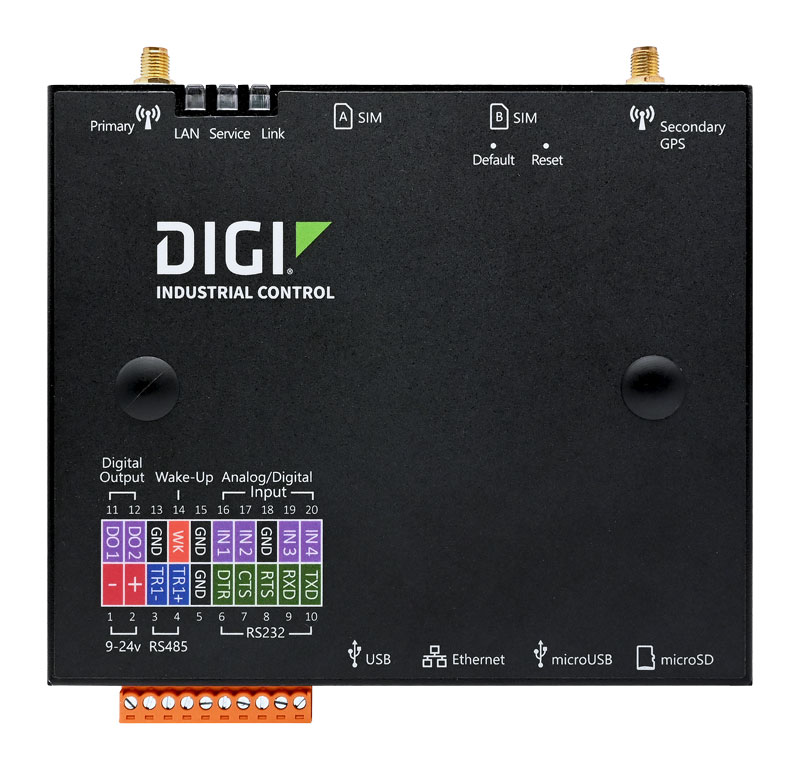

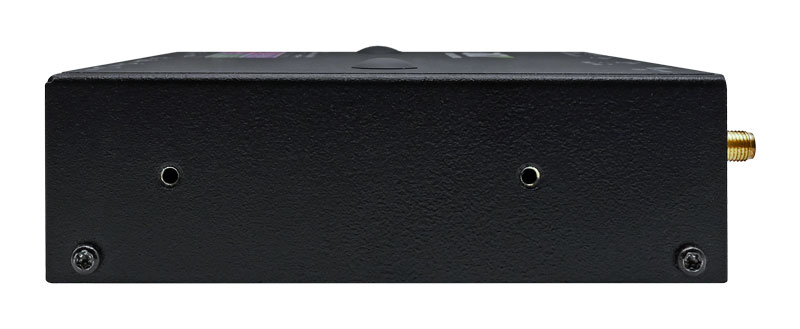

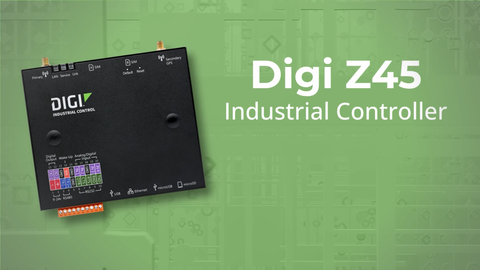

Z45 工业控制器

完整的盒式 SCADA 系统,在同一平台上提供类似于 PLC 的精密自动化控制,并提供通信功能


  • 用于模拟、数字、十六进制和脉冲信息处理的集成接口
  • Modbus 客户端和服务器配置
  • 内置数字和模拟输入、数字输出
  • 通过 USB、以太网和串行接口进行网络连接
  • 车载仪表盘显示屏,配有仪表、指示器和图表
  • Self-provisioning devices report to Digi Axess for complete visibility of assets
  • 覆盖北美运营商所有频段的 LTE,并提供 3G HSPA 后备功能
  • 自动运营商配置和双 SIM 卡故障切换支持

这款坚固耐用、结构紧凑的单机将可编程逻辑控制器 (PLC) 和 SCADA 系统的功能整合到一个集成工具包中,可针对所有工业监测和控制要求进行快速的端到端部署。Z45 与板载、基于网络的自动化控制应用程序相结合,可将警报、报告和控制功能引入网络浏览器、移动设备或现有 SCADA 基础设施,而无需进行定制软件开发。

Automation Control is a software PLC type application based on an intuitive development environment. Monitoring and control applications are quickly deployed with a no-code, menu driven toolset that gets maintainable solutions to market faster and at a lower cost than legacy PLC approaches.

Z45 Industrial Controllers interface with a wide range of sensors to bring data seamlessly and quickly into the system for processing. Standard support includes current and voltage for analog data, wet and dry contacts, Modbus RTU and TCP, and other vendor specific protocols.

The Z45 controller securely and efficiently moves data over the network. The controllers are provisioned for use on domestic and international carriers, with Cellular, Ethernet and Wi-Fi communication options available. Whether the Z45 is operating as a communications device or as an application controller, Digi Axess is available to provide a detailed visualization of network, platform, and application operations. For specialized applications requiring custom coding the Z45 supports a downloadable cross compile development environment, a tested source distribution, and a fully documented tool chain.

AUTOMATION CONTROL — NO CODE, WEB-BASED LOGIC CONFIGURATION

The Z45 Automation Control Application offers the first platform where you can develop custom solutions to address complex problems without low level programming. Web-based configuration and solutions are developed on the controller, and automatically deploy from the controller to the cloud.

The no-code, rapid development software package allows for deployment of monitoring and control applications faster, and at a lower cost than legacy PLC toolsets.

“LANGUAGE-LESS PLATFORM”

No programming required. Our Automation Control platform allows you to address complex problems without low level programming.

COMPLEX FORMULAS AND LOGIC

Built-in function and logical operators give you PLC-like control at the edge with:
– Level thresholds with hysteresis
– Control and monitoring at set thresholds
– Custom alarms and messages

RAW DATA INTERFACES

“Plug and Play” functionality for standard data types including Pulse, Digital, Analog, MODBUS and more.

Manage from Digi Axess — Let Digi Stand Watch

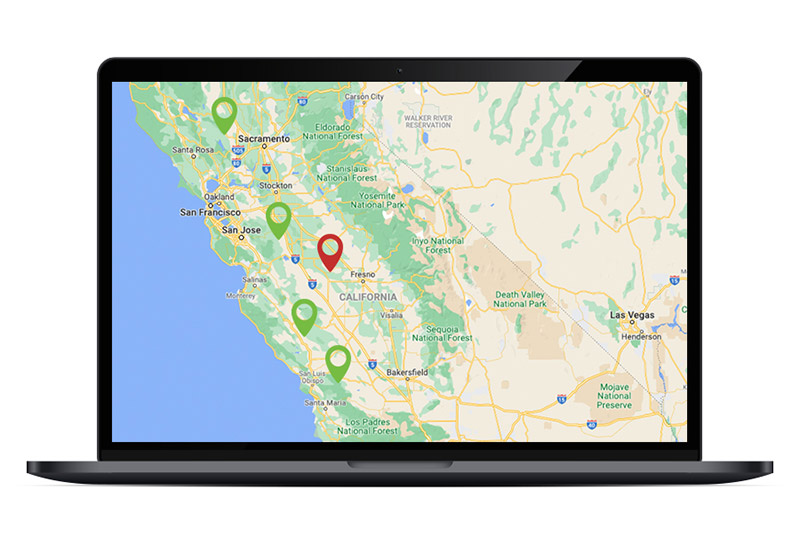

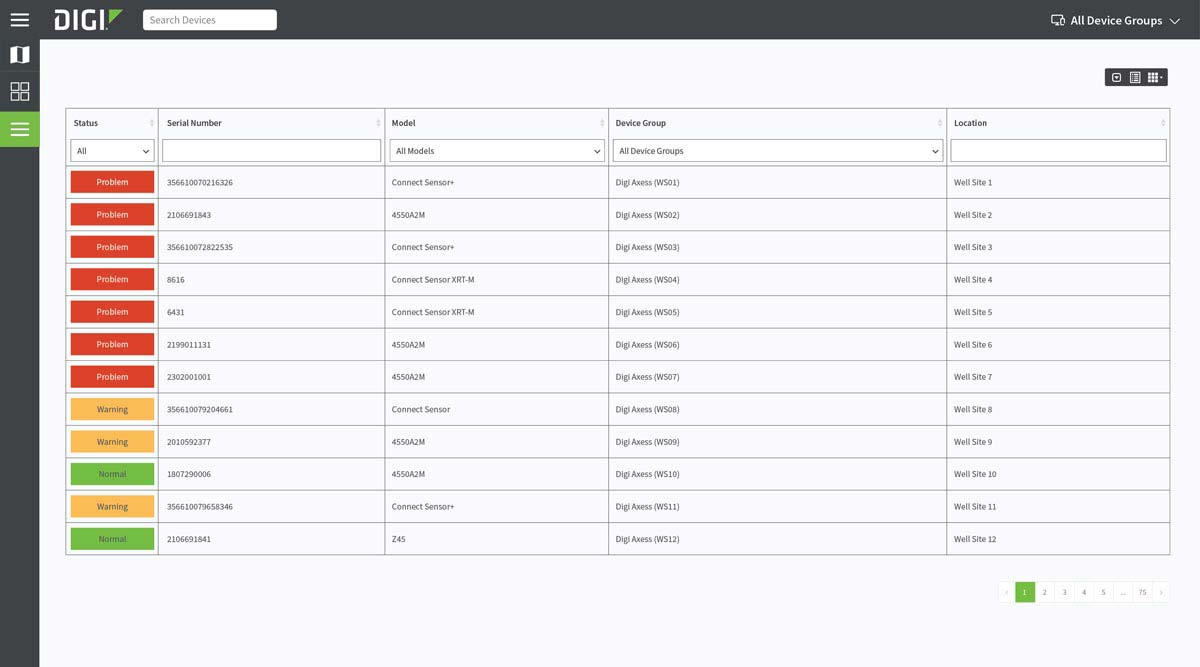

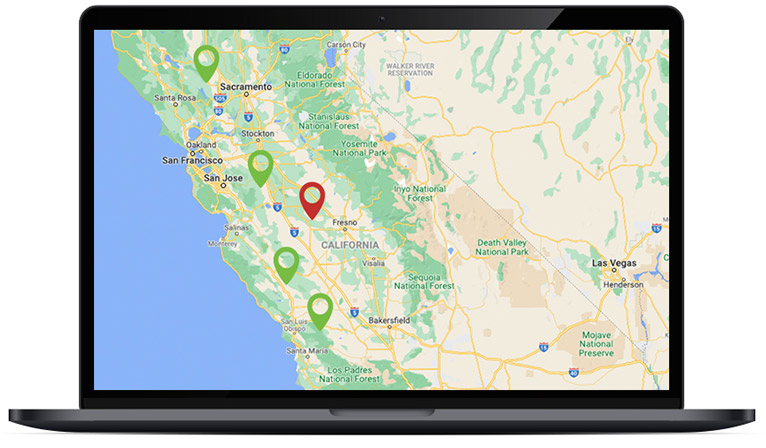

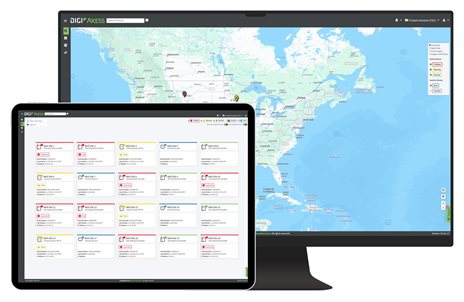

Digi Axess provides a complete snapshot of your network and the equipment behind it. Know as much as you want, or as little as necessary, in order to make informed decisions. Sensor data is processed at the edge and passed to Digi Axess to offer a central point from which to manage all of your assets. See real-time actionable data with the ability to customize reports and alarms.

Digi eliminates the dependency on a server to perform network-wide control. Each endpoint is an autonomous endpoint capable of local monitoring and control. You are in control of the data and how it is used.

  • Take action on real-time data with phone and cloud reporting
  • Define and monitor critical points of the system
  • Customize reports and alarms
  • Receive alerts by text message and email during critical events
  • Gain insights with access to historical data and automated reporting

获取个性化报价

提供您的信息,我们将与您联系

Z45 工业控制器
SKU: CTK-Z4500A2X Industrial Controller — Ethernet, Digi Axess + Automation Licenses CTK-Z4500A2X 如何购买
SKU: CTK-Z4550A2M Industrial Controller — Cellular, Digi Axess + Automation Licenses CTK-Z4550A2M 如何购买
SKU: CTK-Z4550A2M-1 Industrial Controller — Cellular, Digi Axess + Automation Licenses with antennas CTK-Z4550A2M-1 如何购买
SKU: CTK-Z4550A2M-2 Industrial Controller — Cellular, Digi Axess + Automation Licenses with antennas and 12 VDC wall plug power supply CTK-Z4550A2M-2 如何购买
SKU: CTK-Z4550A2M-3 Industrial Controller — Cellular, Digi Axess + Automation Licenses with antennas and 24 VDC DIN rail power supply CTK-Z4550A2M-3 如何购买
SKU: CTK-Z4550A2W Industrial Controller — Wi-Fi, Digi Axess + Automation Licenses CTK-Z4550A2W 如何购买
配件
SKU: CTK-Z1201 Digi Z1201 多功能输入/输出控制器 CTK-Z1201 如何购买
SKU: 76002123 天线,外置,MIMO 2 x 4G LTE / 3G / 2G,GPS,1 米电缆,扁平,SMA 76002123 如何购买

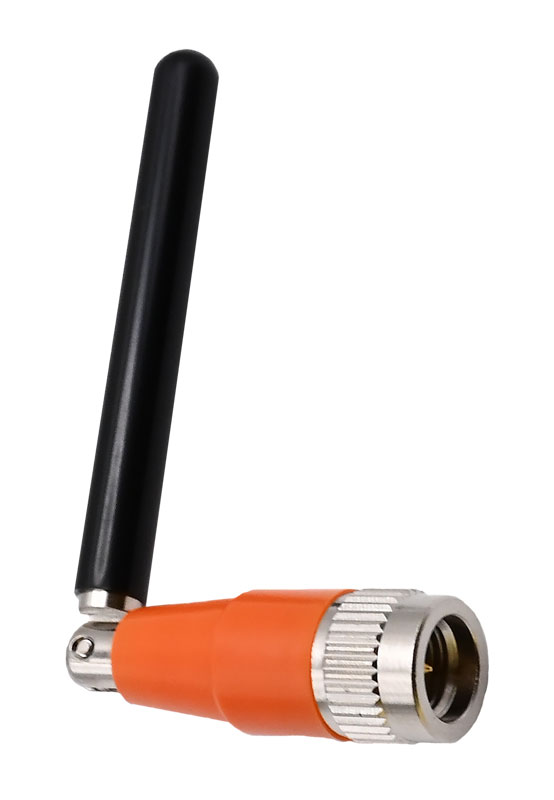

SKU: 76002125 天线,五频,单极 4G / 3G / 2G,GPS,旋转底座 SMA,铰链式 76002125 如何购买
SKU: 76002126 天线,多频带,4G / 3G / 2G,GPS,柔性/带状,SMA 76002126 如何购买
SKU: 76002127 壁式电源;美国 100-240 VAC / 50-60 Hz,12 VDC,1 A 0.25 英寸 S/T 76002127 如何购买

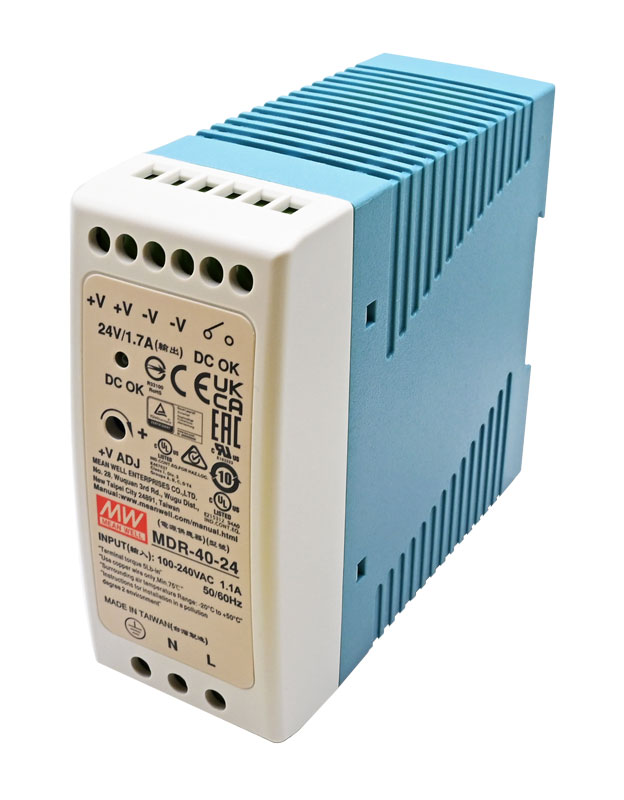

SKU: 76002128 电源,DIN 安装;输出:40 W,24 VDC 1.7 A;输入:85~264 VAC 76002128 如何购买

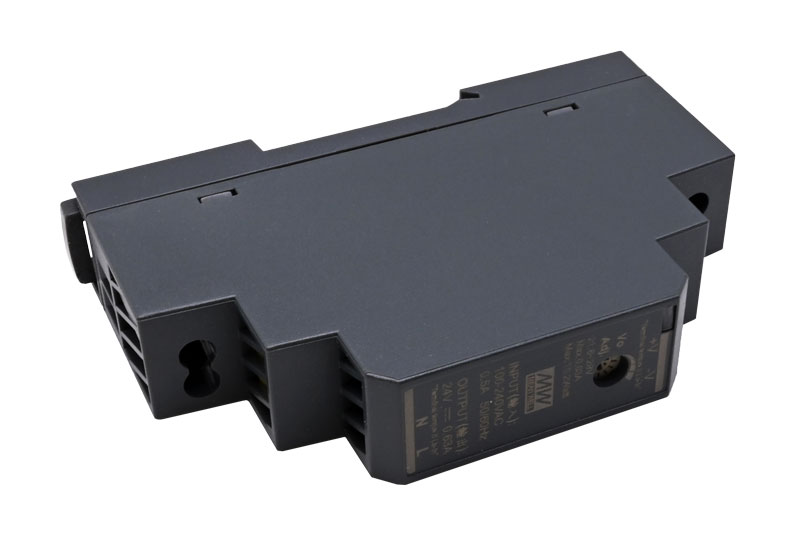

SKU: 76002129 电源,DIN 安装;输出:15 W,24 VDC 0.6 A;输入:100-240 VAC 50/60 hz 76002129 如何购买

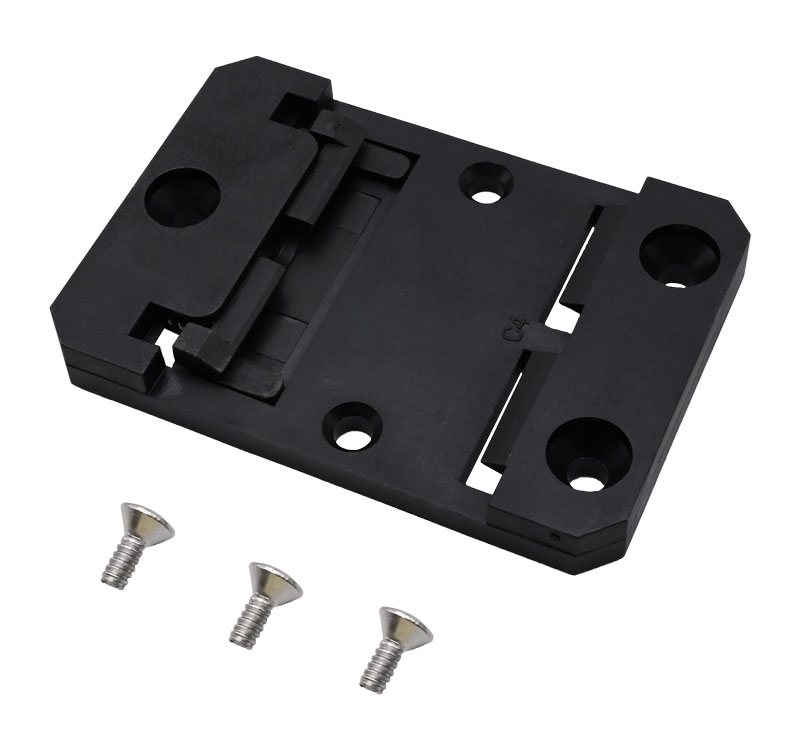

SKU: 76002130 安装套件,DIN 导轨 76002130 如何购买
Z45 Remote Management System (RMS) Industrial Controllers
SKU: CTK-Z4550A2M-RMS Z45 Remote Management System (RMS) Industrial Controller with NEMA enclosure — cellular CTK-Z4550A2M-RMS 如何购买
Digi Axess
SKU: DIGI-AXESS-1YR Your Gateway to Cloud and Edge-Based Remote Monitoring and Control Solutions DIGI-AXESS-1YR 如何购买
SKU: DIGI-AXESS-3YR Your Gateway to Cloud and Edge-Based Remote Monitoring and Control Solutions DIGI-AXESS-3YR 如何购买
规格 Z45 INDUSTRIAL CONTROLLERS
CELLULAR TECHNOLOGY
(available on applicable models)
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41;
3G: B1, B2, B3, B4, B5, B8
多载波、自动配置
双 SIM 卡(2FF)
支持 DL MIMO/Rx 分集
(1) 50 Ω SMA(中心引脚:公)
WI-FI TECHNOLOGY
(available on applicable models)
802.11b/g/n (2.4 GHz)
64/128-bit WEP, WPA/WPA2, WPA-PSK, WPA2-PSK
批准 FCC、ICC、CE、PTCRB
Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus;
visit product certifications for latest cellular certifications and updates
POSITION LOCATION GPS, GLONASS

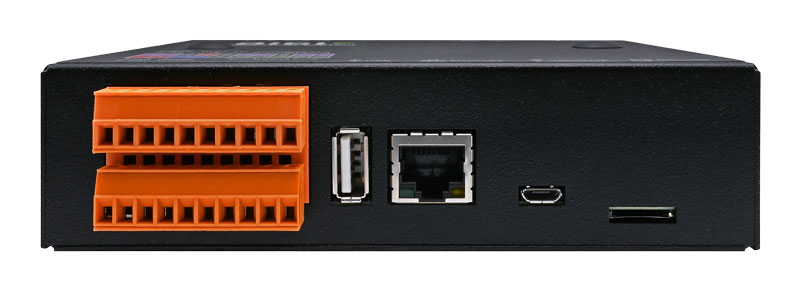

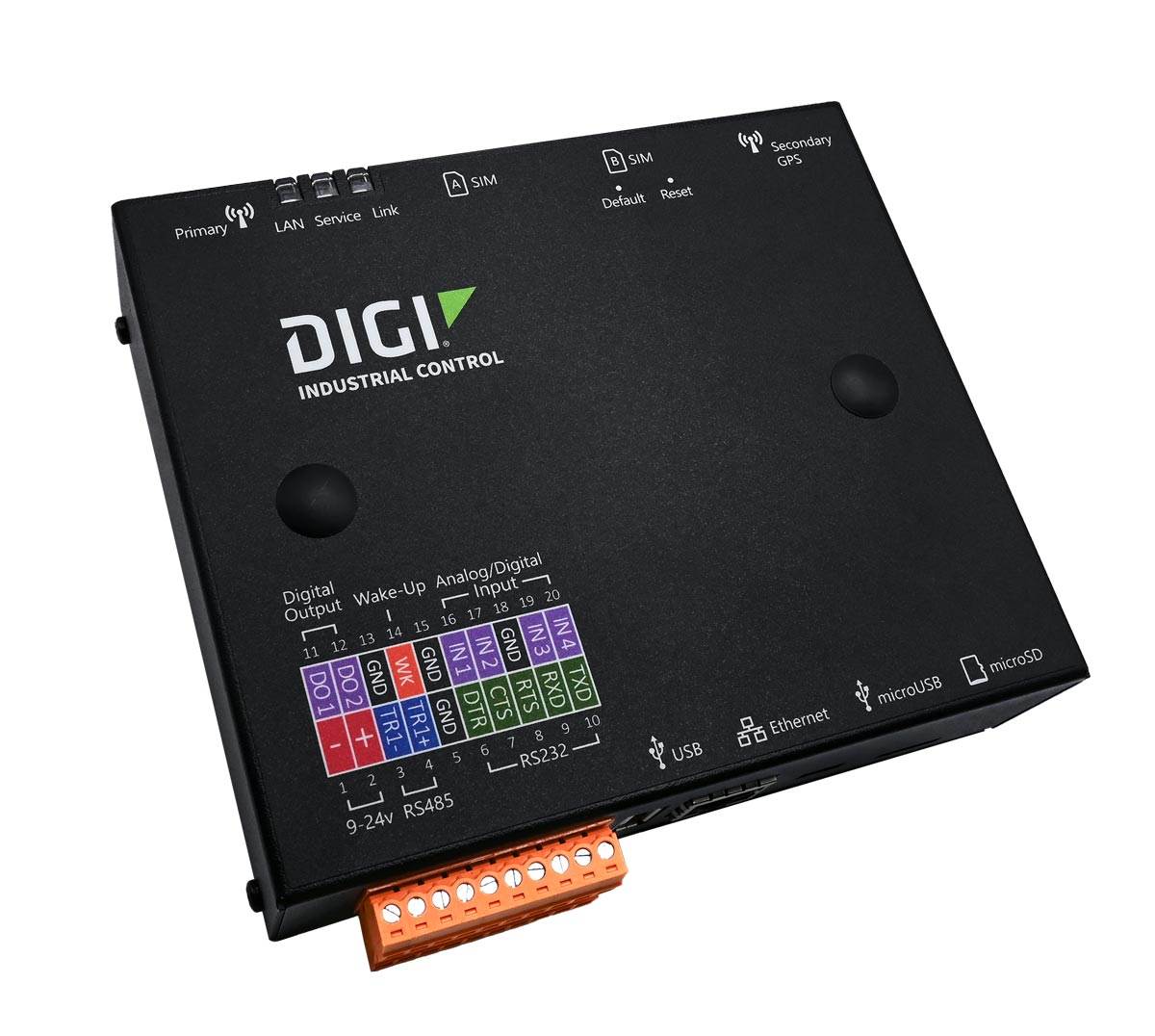

HOST INTERFACES 10/100 Ethernet (RJ-45)
(1) RS-232(端子台)
(1) RS-485(端子台)
(1) 全速 USB(A 型)
(1) 高速微型 USB OTG
INPUT / OUTPUT (4) User configurable, digital/analog inputs (0 – 5 V / 4 – 20 mA)
(2) Digital outputs (expandable with Z1201 I/O Module)
存储器 128 MB DDR2 内存
256 MB SLC NAND 闪存
(1) MicroSD 插槽(可从外部接入)
PLATFORM Linux 4.xx 操作系统
Atmel ARM9 处理器
网络管理员 2.0
Digi Axess
自动化应用
权力 Input: 9 – 24 VDC
Power: 190 mA (typical — Ethernet not connected, varies with signal level)
环境 Operating temperature: −30° to 70° C (−22° to 158° F)
Humidity: 90% non-condensing
尺寸 13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in), excluding terminal block and DIN clip
重量 0.29 kg (0.65 lb)
保修 3-year standard warranty
