Designed specifically for I/O expansion of Z45 Industrial Controllers, the Z1201 is ideal for industrial automation projects with analog, digital and/or pulse sensors. Manage everything from indicator lamps to motor start/stop operations with the Z1201 I/O Module and our Automation Control Application. The module easily interfaces with most any 0-5 VDC, 4-20 mA current loop or 0-10 VDC sensor.

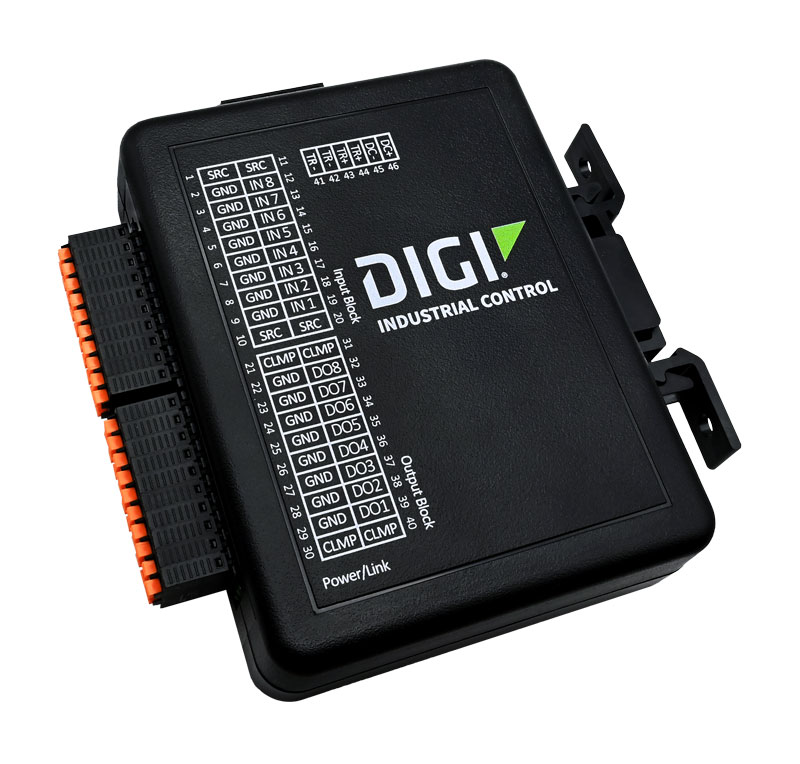

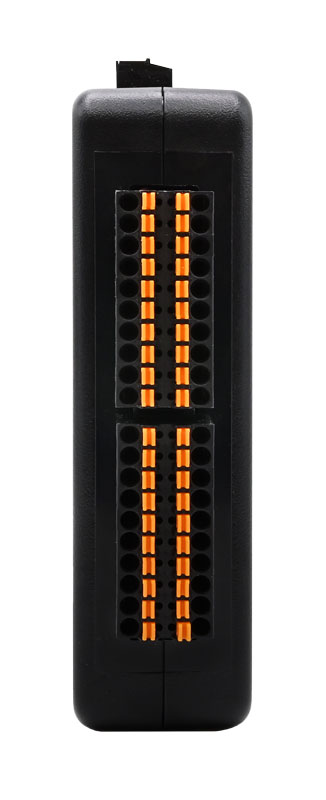

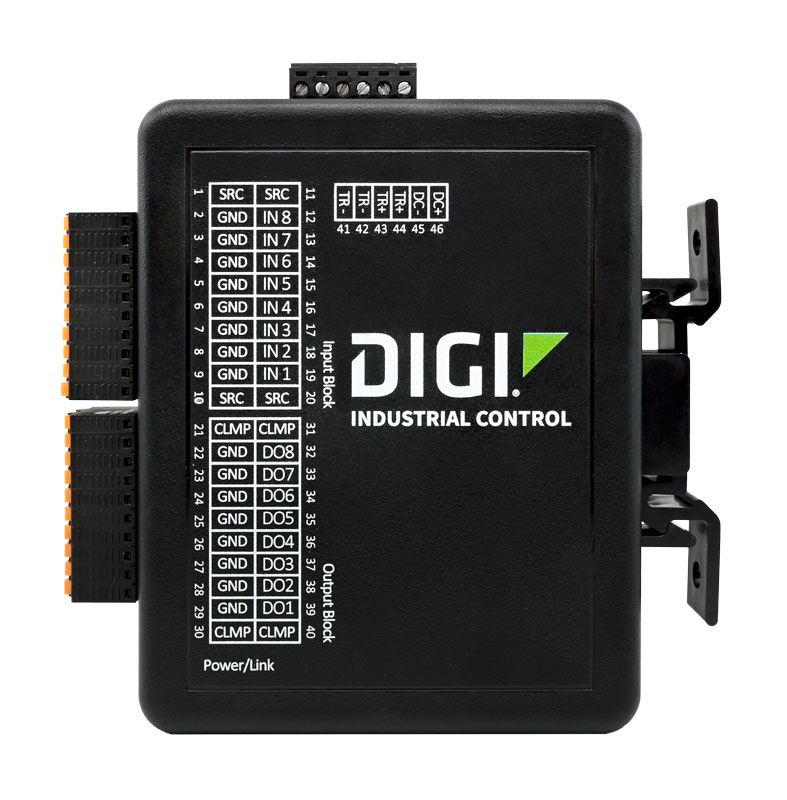

The Z1201 is a 16-pin, multifunction I/O module consisting of 8 open collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation.
Data communication between Z1201 modules and Z45 Industrial Controllers is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application.

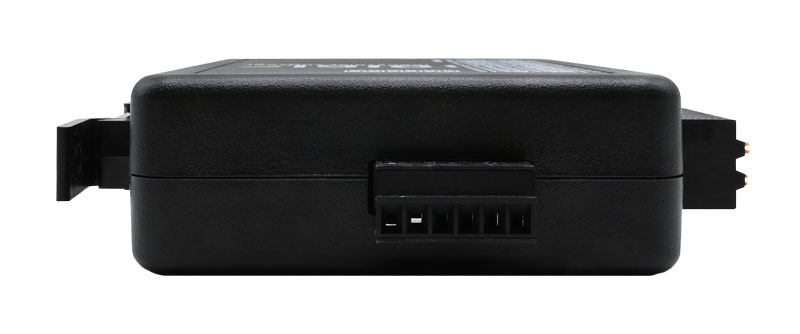

Z1201 modules can be daisy-chained with power and communication connections for expansion beyond a single I/O module.
