完整的盒式 SCADA 系统，在同一平台上提供类似于 PLC 的精密自动化控制，并提供通信功能

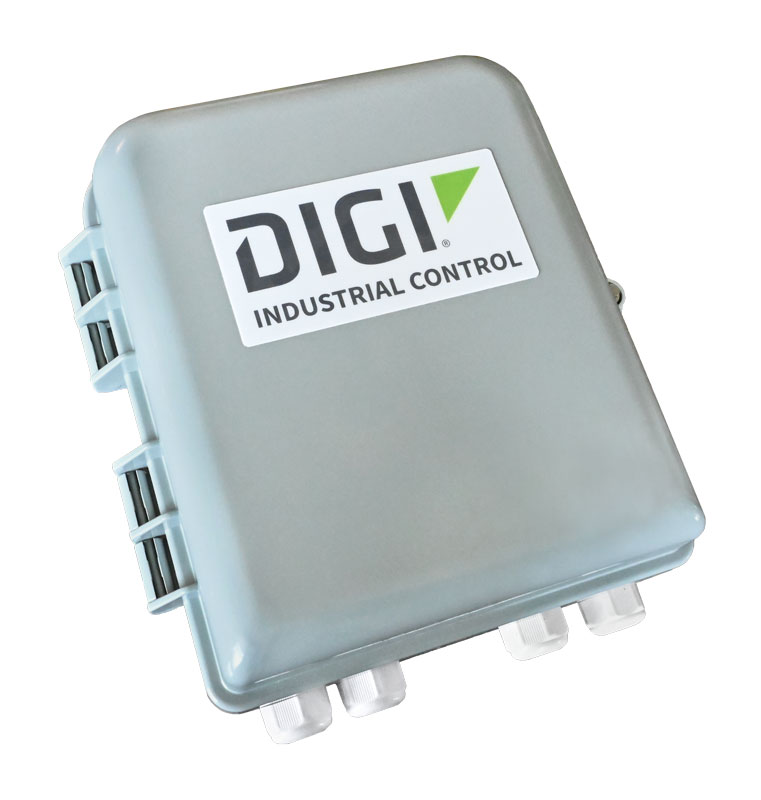

The Z45 Remote Management System (RMS) comes complete with antennas, a robust power supply and a rugged enclosure built to withstand harsh environments. This all-in-one solution ensures reliable performance in challenging industrial conditions.
Automation Control is a software PLC type application based on an intuitive development environment. Monitoring and control applications are quickly deployed with a no-code, menu driven toolset that gets maintainable solutions to market faster and at a lower cost than legacy PLC approaches.
Z45 RMS Industrial Controllers interface with a wide range of sensors to bring data seamlessly and quickly into the system for processing. Standard support includes current and voltage for analog data, wet and dry contacts, Modbus RTU and TCP, and other vendor specific protocols.
The Z45 controller securely and efficiently moves data over the network. The controllers are provisioned for use on domestic and international carriers, with cellular, Ethernet and Wi-Fi communication options available.
Whether the Z45 RMS is operating as a communications device or as an application controller, Digi Axess is available to provide a detailed visualization of network, platform, and application operations.
For specialized applications requiring custom coding the Z45 RMS supports a downloadable cross compile development environment, a tested source distribution, and a fully documented tool chain.
Features and Benefits
- 用于模拟、数字、十六进制和脉冲信息处理的集成接口
- Modbus 客户端和服务器配置
- Built-in digital and analog inputs, digital outputs
- Network connectivity over USB, Ethernet and serial interfaces
- On-board dashboard display: gauges, indicators and charts
- Self-provisioning devices report to Digi Axess for complete visibility of assets
- LTE coverage on all bands for domestic and international carriers with 3G HSPA fallback
- 自动运营商配置和双 SIM 卡故障切换支持

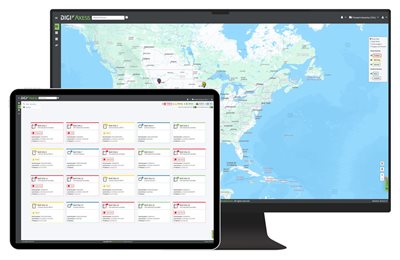

Digi Axess
Your Gateway to Cloud and Edge-Based Remote Monitoring and Control Solutions
Elevate your monitoring and control capabilities with Digi Axess. Whether you prioritize edge-based control or the flexibility of cloud-based monitoring, Digi Axess serves as your unified platform, offering an intuitive interface to streamline data management for enhanced operational efficiency.
Unlock simplified automation control at the edge, with our built in functions and logical operators to enable:
- Dynamic scheduling: customize tasks for peak efficiency using real-time data
- Conditional actions: trigger tailored responses based on complex conditions
- Adaptive control: optimize performance and adjust parameters based on feedback

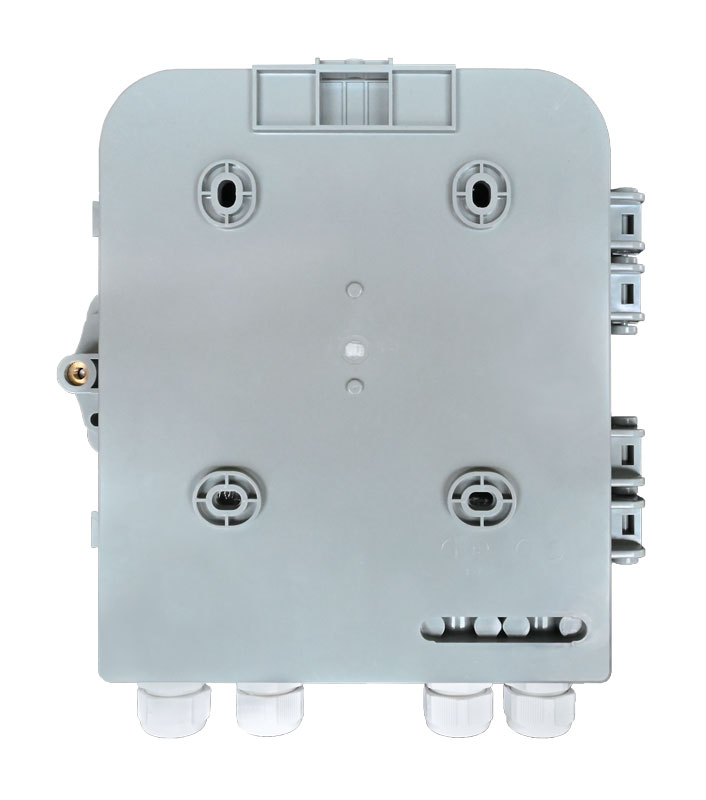

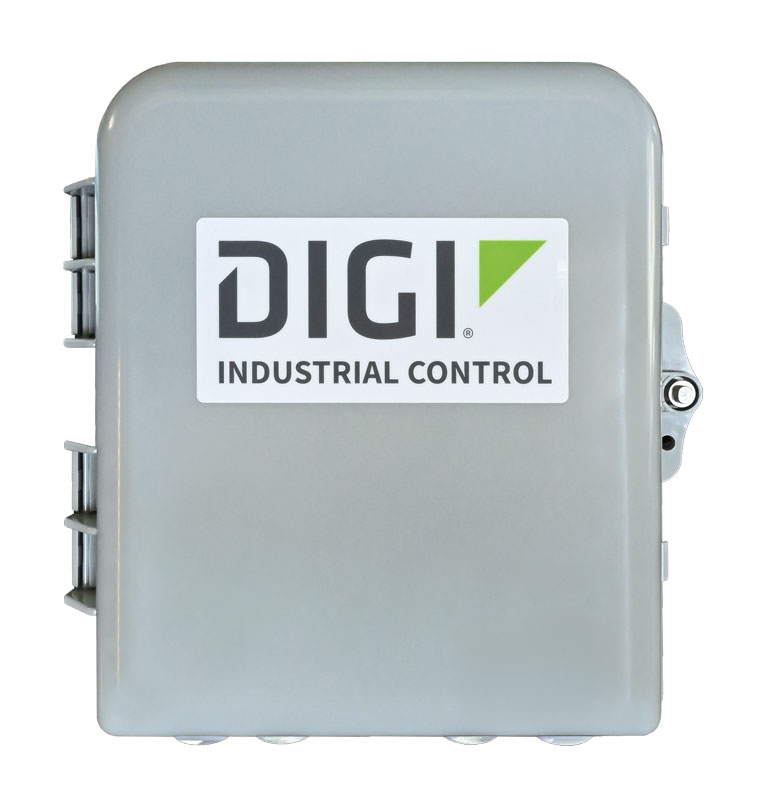

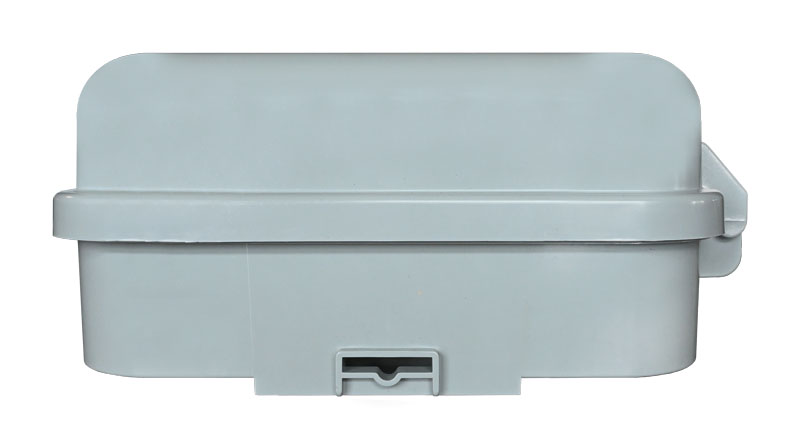

Z45 RMS Industrial Controller NEMA Enclosure
- NEMA enlosure features:
- Waterproof and UV stable
- RF transparent for wireless devices

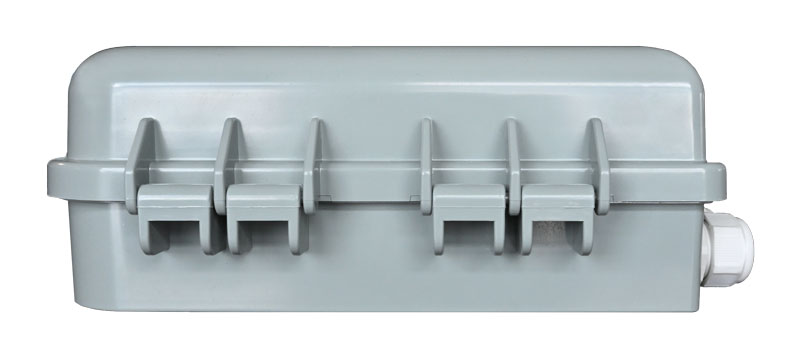

- Gasketed lid with dual latches
- Tamper-proof locking screw with key and provision for padlock
- Material / color: Polycarbonate + ABS
- Dimensions: Outer: 276 mm x 252 mm x 106 mm) 10.9 x 9.2 x 4.2 in); Inner: 191 mm x 165 mm x 83 mm (7.5 in x 6.5 in x 3.3 in)
- Weight: 0.6 kg (1.5 lb)
- Ratings / flame rating: Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
- Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz

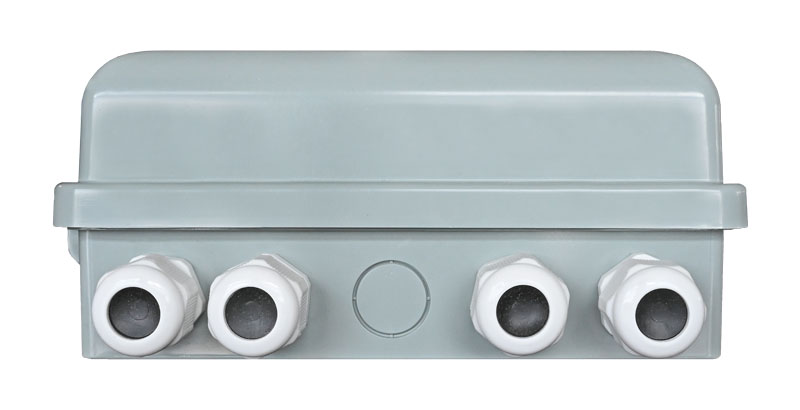

- Included cable glands: (4) M23 x 1.5
- Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
- Included mount kit: Mount kit — DIN rail
Z45 Remote Management System (RMS) Industrial Controller
- 用于模拟、数字、十六进制和脉冲信息处理的集成接口
- 蜂窝技术：
- LTE 频段：B1、B2、B3、B4、B5、B7、B8、B12、B13、B20、B25、B26、B29、B30、B41；3G：B1、B2、B3、B4、B5、B8
- 多载波、自动配置
- 双 SIM 卡（2FF）
- 支持 DL MIMO/Rx 分集
- (1) 50 Ω SMA（中心引脚：公）
- Approvals:
- 位置定位： GPS, GLONASS
- 主机接口：
- 10/100 以太网 RJ-45
- (1) RS-232（端子台）
- (1) RS-485（端子台）
- (1) 全速 USB（A 型）
- (1) 高速微型 USB OTG
- 输入/输出：
- (4) User configurable, digital/analog inputs (0 - 5 V / 4 - 20 mA)
- (2) 数字输出（可使用 Z1201 输入/输出模块进行扩展）
- 内存
- 128 MB DDR2 内存
- 256 MB SLC NAND 闪存
- (1) MicroSD 插槽（可从外部接入）
- 平台：
- Linux 4.xx 操作系统
- Atmel ARM9 处理器
- 网络管理员 2.0
- Digi Axess
- 自动化应用
- Power: 9 - 24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)
- Operating temperature: −30° to 70° C (−22° to 158° F)
- 尺寸13.92 x 11.99 x 3.68 厘米（5.48 x 4.72 x 1.45 英寸）
- 保修：3 年标准保修
- 可用配件
盒子里有什么？
- Z45 Remote Management System (RMS) Industrial Controller with NEMA enclosure — cellular
- Included power supply: Power supply — DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100 - 240 VAC 50/60 hz
- Included cable glands: (4) M23 x 1.5
- Included antennas: (2) Antenna mounted inside enclosure (multiband, 4G / 3G / 2G, GPS, flex/strip, SMA)
- Included mount kit: Mount kit — DIN rail
*Accessories not included with Z45 Industrial Controller models unless otherwise noted.
