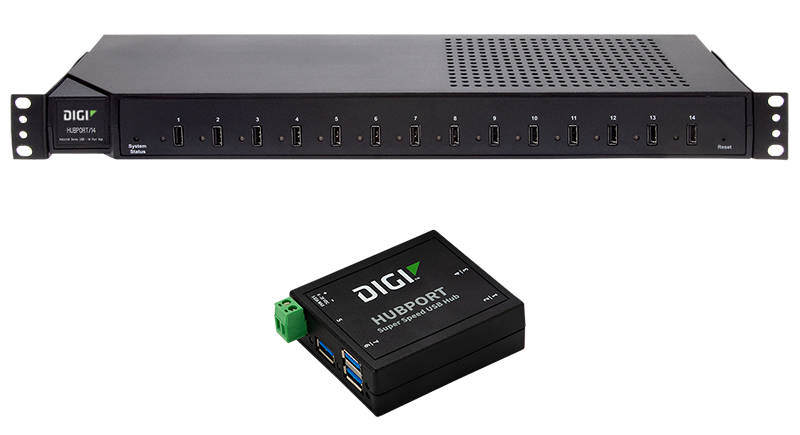

Hubport®

交换式 USB 扩展集线器


  • 工业 USB 2.0 或 3.1 集线器,可实现即时 USB 扩展
  • 机箱结构紧凑,有 4 或 7 个端口可供选择
  • 机架式 14 端口 USB 2.0 型号
  • 用于室内应用的交流机型
  • 适用于户外/移动应用的可变范围直流型号
  • 交换式 USB 可确保所有端口发挥最大性能
  • 紧凑型机型上的锁定式或终端式电源连接器

Hubport offers a simple solution for adding USB ports to a PC, server or thin client for instant peripheral device connectivity. This external, user installable solution plugs into a standard USB port to provide additional USB ports in a compact chassis. The switched USB architecture guarantees maximum performance on all ports simultaneously.

Models include AC or DC powered hubs that accept power from standard AC wall plugs or a range of 5.5-30 VDC power sources, such as vehicle batteries. The Industrial grade compact chassis is small enough to fit nearly anywhere. With a high USB port count, the rack mount option is perfect for data center applications.

Feature-rich design, extensive operating system support and reliable performance make Hubport ideal for mission-critical environments. Applications include connecting devices to a hub powered by car or truck battery for mobile applications; providing multiport USB connectivity in a kiosk or other compact environments; and connecting USB peripheral devices at an office workstation.

规格 Hubport Compact USB 3.1® Hubport Compact USB 2.0® Hubport Rack®
USB Features
港口 7 USB 3.1 Type A 4 or 7 USB 2.0 Type A 14 USB 2.0 Type A
数据速率 5 Gbps 480 Mbps; Multi-TT switched USB architecture guarantees a full 12 Mbps simultaneously on all downstream ports, even if a high-speed 480 Mbps transfer is active
General Features
电源 500 mA downstream power available per port
操作系统 Linux®*, Windows Server 2016, Windows 10®, Windows Server® 2012, Windows 8®, Windows® 7, Windows Vista®, Windows Server® 2008, Windows XP®, Windows® XP Embedded, Windows NT® 4.0**, Windows NT Embedded**, Windows CE, Windows Server® 2003, Windows 2000
发光二极管 1 System status LED
7 Port Status LEDs; Yellow=Full/High speed, Blue=Super Speed, Off = Port not in operation
1 System status LED
4 or 7 Port Status LEDs; Green=Port operational, Off = Port not in operation
1 System Status LED
14 Port Status LEDs; Green=Port operational, Blinking Green=Port needs attention, Off = Port not in operation
Dimenstions (L X W X H) & Weight 2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm); 6.20 oz (175.80 g) 2.61 in x 3.00 in x 1.00 in (6.63 cm x 7.62 cm x 2.54 cm); 6.20 oz (175.80 g) 4.97 in x 17.00 in x 1.74 in (12.62 cm x 43.18 cm x 4.42 cm); 35.00 oz (1134 g)
其他 No additional IRQ or memory address requirements; Hot-swappable; 14 port is 1U Rack-Mountable (mounting ears included); Plug and Play; USB ports are backwards compatible to USB 2.0, 1.1 and 1.0
电源要求
Power Input (AC Models) 不适用 Ships with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3Amps max Single 120-230 VAC 50/60 Hz power input IEC 60320 inlet. Max power 40W
Power Input (DC Models) Variable power DC products are 6V to 28V Max power of 35W (Terminal Block connector) Ships with plug-mounted 120-230VAC 50-60 Hz at 5VDC @ 3Amps max Single 120-230 VAC 50/60 Hz power input IEC 60320 inlet. Max power 40W
环境
工作温度 -40°C to +70°C (-40°F to 158°F) (Industrial) Hubport/7c (AC model) 0°C to 55°C or Hubport/4c DC and Hubport/7c DC -40°C to +70°C 0°C to 55°C (32°F to 131°F)
相对湿度 0% 至 95%(无冷凝)
监管批准
安全 EN60950、UL 1950、CSA 2.2 No.950、IEC 950
排放物/污染 CE, FCC Part 15 Class B, EN55022 Class B, EN55024
