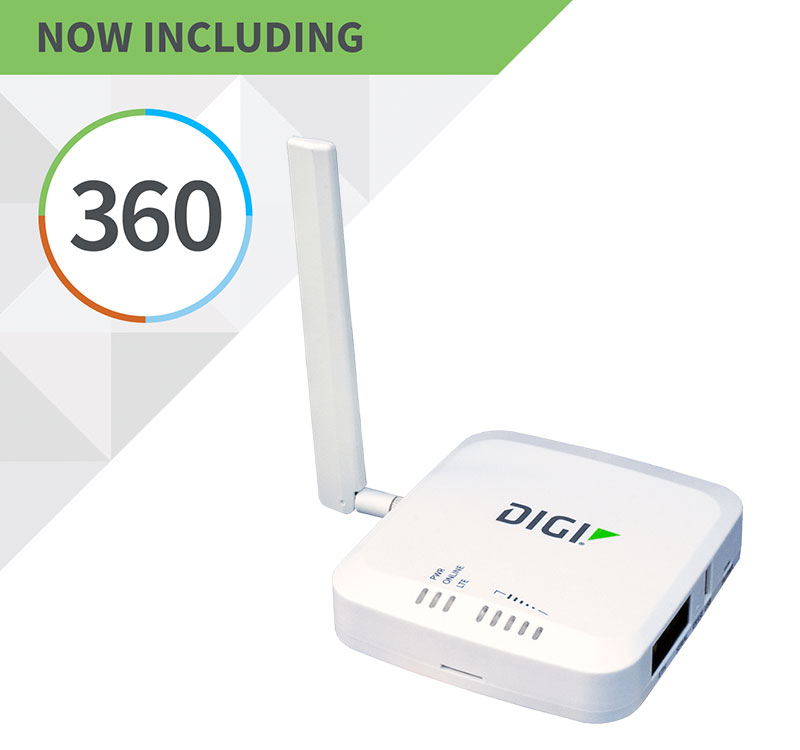

Digi Connect IT Mini Console Server

New

Secure, affordable, managed out-of-band access for isolated remote IT devices


  • IoT router with LTE Cat-M for maximum coverage
  • Out-of-band (OOB) management and recovery using secure SMS
  • Advanced modem management software
  • Early detection and remediation of issues
  • Operates independently from in-band network
  • Identify any unusual activity or attempts to access the remote device
  • Send automated alerts via email or SMS to notify of any network issues
  • 5 V power enables host USB to power unit and eliminate power supply
How to Buy

Digi Connect® IT Mini is a full function IoT router and remote console access server that ensures continuous network uptime to remote locations. It provides a cost-effective, always-on, out-of-band gateway for branch office routers in locations like retail stores, kiosks or other sites. Connect IT Mini enables backup connectivity to manage and correct issues with isolated, critical IT infrastructure.

For enterprises that need serial access for remote equipment monitoring, Digi Connect IT Mini offers a complete and secure cellular-based solution in the industry for less than the cost of an enterprise modem. Using Digi Remote Manager® (Digi RM) and Connect IT Mini, network administrators can identify and remediate issues at the network edge before they can become a work order or cause a network interruption.

Digi TrustFence®, a suite of hardware and security features, ensures the integrity of Digi Connect IT Mini and safeguards out-of-band access to isolated infrastructure. To secure your connections, built-in features include authenticated boot, encrypted data storage, access-controlled ports, and secure software updates.

Digi RM and Digi Connect IT Mini provide easy setup, configuration, security management and serial port monitoring of large installations of remote Digi devices. Digi RM offers web-based device management for any Digi cellular routers, gateways or third-party devices with a single-pane-of-glass view to monitor and access Digi Connect IT console access servers and the critical IT assets to which they are connected.

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More

TrustFence

Digi TrustFence

Digi TrustFence is the security framework for Digi networking and embedded solutions. The TrustFence framework requires security to be designed in at the ground floor, resulting in robust security for connected devices. The built-in security of Digi TrustFence gives you secure connections, authenticated boot, encrypted data storage, secure software updates, and excludes all insecure ingress protocols.

Learn More

Compare Console Servers

Compare Console Servers

Related Resources

3 Essentials for Secure School Connectivity 3 Essentials for Secure School Connectivity From device connectivity to remote updates and out-of-band management, Digi has a solution to simplify your school technology management needs. VIEW PDF Meet the Digi Accelerated Linux Operating System (DAL OS) Meet the Digi Accelerated Linux Operating System (DAL OS) DAL OS delivers sophisticated device functionality I WANT THAT Press Release Digi International Offers Networking Solutions to Enable Enterprise-level Security in Work-from-Home Environments Digi routers, cellular extenders and console servers provide reliable connectivity that is securely tunneled for at-home... READ PRESS RELEASE Digi Connect IT 16/48 Digi Connect IT 16/48 Watch this video to see Digi Product Manager, Ben Tucker, unbox the Digi Connect IT 16/48 and answer key questions about how... WATCH VIDEO Digi Connect IT Console Servers Digi Connect IT Console Servers Watch this video to see how Digi Connect IT can help you rapidly deploy, configure and remotely manage console devices with the... WATCH VIDEO Digi Connect IT Mini Digi Connect IT Mini Watch this video to see Digi Product Manager, Ben Tucker, unbox the Digi Connect IT Mini and answer key questions about how the... WATCH VIDEO Press Release Digi International Introduces Digi Connect IT Family of Console Access Servers for Comprehensive Management and Connectivity of IT Assets in the Data Center and Beyond Digi Connect IT products provide comprehensive and flexible remote console management at enterprise scale with plug-in, module... READ PRESS RELEASE Resilient Console Connectivity Resilient Console Connectivity Rapidly deploy, configure and manage your IT devices with Digi Connect® IT remote console access servers. VIEW PDF Digi Connect IT Mini Datasheet Digi Connect IT Mini Datasheet Digi Connect IT Mini secure, affordable, managed out-of-band access for isolated remote IT devices VIEW PDF

All related resources
SPECIFICATIONS DIGI CONNECT® IT MINI
CELLULAR LTE Cat-M/NB-IoT/2G; LTE bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28; 2G bands: B2, B3, B5, B8
MODULE SUPPORT Global LTE Cat-M/NB-IoT/2G
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud-based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (console, SSH)
NETWORK
ETHERNET RJ-45; 10/100 Mbps (auto-sensing)
CONNECTIONS
SERIAL/USB Serial port RJ-45 RS-232 and USB 2.0 host port
PHYSICAL
DIMENSIONS (L x W x H) 127 mm x 127 mm x 25 mm (5.0 in x 5.0 in x 1.0 in)
WEIGHT 0.37 kg (13 oz)
STATUS LEDS Power, online, LTE, (5) signal strength
POWER REQUIREMENTS
POWER INPUT 5.0 VDC, 1 A; 100-240 VAC
ENVIRONMENTAL
OPERATING TEMPERATURE 0º C to 40º C (32º F to 104º F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR CERTIFICATIONS Verizon, AT&T, PTCRB
SAFETY, ENVIROMENTAL, EMISSIONS/IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES03(B)/NMB-3(B)
WARRANTY
PRODUCT WARRANTY* 3-year




ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP v3, SSH and CLI for web management; remote management via Digi Remote Manager; SMS management
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3; IPSec & OpenVPN tunnels; Cryptology: SHA-1, SHA-2, MD5, RSA; Encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); Authentication: RADIUS, TACACS+, MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; Routing protocols: PPP, OSPF, BGP, RSTP (Rapid Spanning Tree Protocol); IP failover: VRRP, automatic failover/failback to secondary connection
OTHER PROTOCOLS QoS via TOS/DSCP/WRED; UDP/TCP to serial
