The best way to understand the power of edge intelligence is hands-on. In this series well take you through some simple examples that you can use directly, then customize and extend to bring the power of programming to everyones favorite line of radio modules.
MicroPython is an open-source programming language based on Python 3, modified to fit on small devices and optimized for microcontrollers. Using MicroPython, an easy-to-learn scripting and programming language, you can rapidly prototype intelligent behaviors at the edges of your network. Cryptic sensor readings can be transformed into useful data, excess transmissions can be intelligently filtered out, and modern sensors and actuators can be employed directly, with complex procedures carried out locally when needed.
XCTU v6.3.8 and later feature a new MicroPython terminal, allowing the user to interact with MicroPython on the Digi XBee 3 modules. Through the serial interface in the terminal, users can write, test, load, and run MicroPython code using the familiar REPL interactive prompt.
Its simple to get started. Well begin with the Digi XBee 3 Cellular LTE-M Kit. (Other Digi XBee 3 Cellular Kits are similar.)
To use the MicroPython Terminal in XCTU:
Lets upload some simple "Hello World" code to confirm everything is working. Using a text editor, such as Notepad in Windows or TextEdit on MacOS, type in this short script:
MicroPython v1.9.4-797-g4361c12 on 2018-09-20; XBC LTE-M/NB-IoT Global with EFR32MG
By completing this Hello World example you now have all the skills needed to start using edge intelligence. You have set up the Digi XBee 3 hardware, connected it to the configuration software, opened MicroPython, loaded working code, and run it yourself. You are ready to run your first real application.
Now that we know how to create MicroPython code on the Digi XBee 3 platform, lets do something useful with it. Many IoT systems are fundamentally sensor networks. They sample some value locally, such as temperature, water pressure or human presence, then send that information for logging, processing and decision-making by online applications. For our next project, were going to take a temperature measurement using a simple sensor, then send it to your phone as an SMS text message. This measurement cycle repeats every minute, stopping after 10 rounds to protect your sanity.
Many sensors produce a simple varying voltage that needs to be transformed into the proper units. For example, at 25º Celsius a temperature sensor might output 750 mV. While its possible to send the meaningless number 750 to the cloud application, it would be much clearer to send 25ºC insteadthats the actual temperature. This is easily accomplished in MicroPython, and these transformations will be increasingly helpful as we build more intelligent systems.
First, lets attach a sensor to our Digi XBee 3 Cellular modem. To make things easy, we will use a the TMP36 temperature sensor, which is self-calibrating and communicates over a single wire.
The easiest way to connect additional components to the XBIB development board is to solder one of these headers to the 20-pin socket on the XBIB labeled P1. Now you can use jumper wires to attach peripherals like sensors or motors.
Note: If you dont have jumper wires or a header, soldering wires or sensors directly to the XBIB board will also work.
Use jumper wires to connect the TMP36 temperature sensor to the XBIB board.
With the Digi XBee 3 Cellular on the XBIB board and connected to your computer over USB, launch the XCTU program.
Copy the below code to a text editor like Notepad. Be sure to enter your own phone number, replacing "your_mobile_number_here" before uploading the code. Enter it just as you would dial it on a cell phone, including the + symbol if needed. By default, this program sends a temperature reading once per minute, 10 times total. You can customize that by changing the wait_time or cycles variables as desired.
Remember, this sample code must be edited before you upload it.
# Digi XBee 3 Cellular Basic Example
Once the code has been edited by adding your mobile phone number, it can be uploaded in XCTU at the MicroPython Terminal in the usual way:

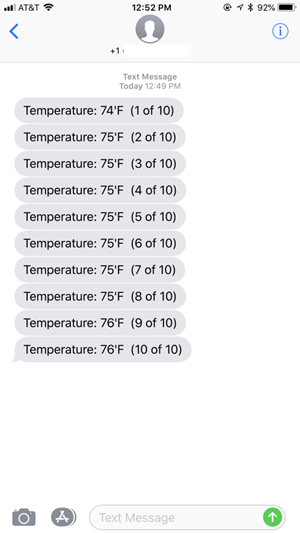

With the temperature SMS example running, you should begin receiving text messages. If you left the settings at their default, you will receive ten messages, one minute apart. The results on your phone should look like this:
By completing this SMS example you have created real, if basic, edge intelligence. Now you have experience hooking up a sensor, recording its values, transforming them into useful units and sending them to a mobile phone. In future posts, we will look at uploading data to cloud applications, triggering alerts, improving battery life, reducing bandwidth costs and much more.
