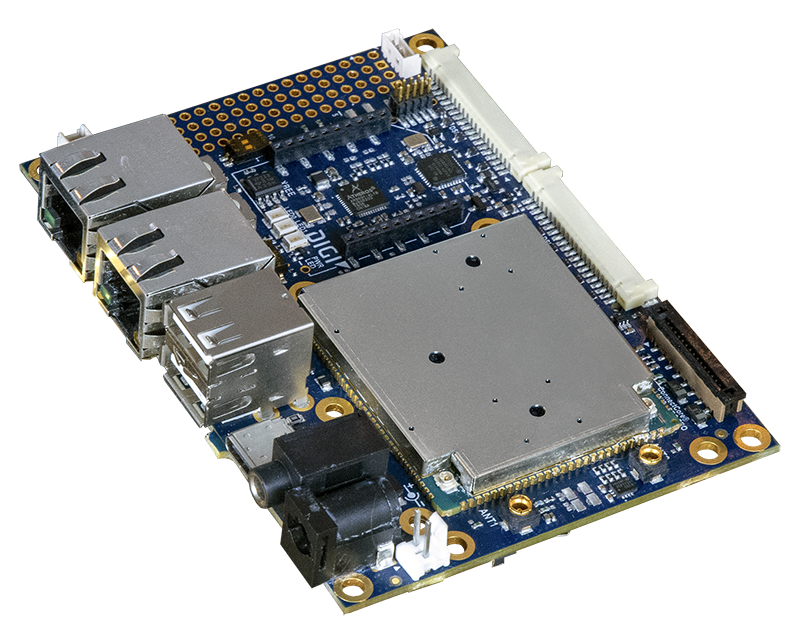

Digi ConnectCore 8X SBC Pro

基于 NXP i.MX 8X 的智能互联单板计算机;具有可扩展的双核/四核性能,适用于工业IoT 应用

  • 工业 i.MX 8X 四核/双核 SOM 和 SBC 平台系列
  • 紧凑型 Pico-ITX 外形尺寸(100 毫米 x 72 毫米)
  • 为低功耗设计提供硬件和软件支持的电源管理功能
  • 具有硬件加速的多显示屏和摄像头功能
  • 预认证双频 802.11a/b/g/n/ac 2x2 和蓝牙® 5 连接功能
  • 与蜂窝调制解调器和Digi XBee® 3无缝集成
  • 内置Digi TrustFence®设备安全功能
  • 支持 Yocto Project® Linux® 和 Android™ 系统

Digi ConnectCore® 8X SBC Pro delivers a powerful, secure and cost effective off-the-shelf single board computer with complete support for Linux® and Android™. It includes Digi TrustFence® security framework with out-of-box features such as secure boot, encrypted filesystems, protected ports, and more.

Digi ConnectCore 8X SBC Pro offers significantly reduced time-to-market by virtually eliminating the traditional risk, effort, and complexity of custom board designs without sacrificing flexibility or capabilities.

The compact form factor integrates an on-board dual-band antenna option, USB connectivity, Digi XBee® RF connector and cellular connectivity options, multi-display/camera and audio support, external storage and expansion connectors. Digi ConnectCore 8X SBC Pro is highly flexible and can be used in a wide-range of industrial applications, even those with harsh environments.

信任围栏Yocto 项目蓝牙Wi-Fi 联盟恩智浦金牌合作伙伴由 AWS 提供支持安卓

SKU:CC-WMX8-KIT Digi ConnectCore 8X SBC Pro 开发套件 CC-WMX8-KIT 如何购买
SKU:CC-SBP-WMX-JM8E Digi ConnectCore® 8X SBC Pro CC-SBP-WMX-JM8E 如何购买
SKU:CC-MX-JQ7D-ZN Digi ConnectCore® 8X SOM DualXZ 1.2 GHz、8 GB eMMC、1 GB LPDDR4 CC-MX-JQ7D-ZN 如何购买
SKU:CC-MX-JM7D-ZN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz、8 GB eMMC、1 GB LPDDR4 CC-MX-JM7D-ZN 如何购买
SKU:CC-MX-JM8D-ZN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz、8 GB eMMC、2 GB LPDDR4 CC-MX-JM8D-ZN 如何购买
SKU:CC-WMX-JM7D-NN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz、8 GB eMMC、1 GB LPDDR4、802.11a/b/g/n/ac 2x2、Bluetooth® 5 CC-WMX-JM7D-NN 如何购买
SKU:CC-WMX-JM8E-NN Digi ConnectCore® 8X SOM QuadXPlus 1.2 GHz、16 GB eMMC、2 GB LPDDR4、802.11a/b/g/n/ac、2x2、蓝牙® 5 CC-WMX-JM8E-NN 如何购买
SKU:CC-ACC-LCDH-10 LCD 应用套件,包括 10 英寸 WXGA(高分辨率)LCD 面板 CC-ACC-LCDH-10 如何购买
Digi ConnectCore 云服务
Digi ConnectCore® 云服务使各行各业的原始设备制造商能够利用Digi ConnectCore 系统模块(SOM)创建具有远程控制面板、服务和应用功能的连接设备。
Digi ConnectCore 安全服务
在产品发布后维护连接设备的安全性是一项挑战。Digi ConnectCore® 安全服务使客户能够确保产品安全。
获取部署、管理、连接、定制和增强 Digi 解决方案所需的帮助
Digi 无线设计服务通过嵌入无线技术帮助企业解决业务问题,从而创造出创新的 M2M 产品
规格 Digi ConnectCore® 8X SBC Pro
应用处理器 NXP i.MX8QuadXPlus
  • 4x Cortex — A35 cores at 1.2 GHz
  • 1x Cortex - M4F 内核,频率为 266 MHz,用于实时处理
  • 1x Tensilica® Hi-Fi 4 DSP
存储器 Up to 16 GB eMMC, up to 2 GB LPDDR4 (32-bit)
图形 Multi-stream-capable HD video engine with H.265 (4Kp30), H.264 (1080p60), VP6/VP8 (1080p60), MPEG-2 (1080p60), MPEG4 (1080p),
RealVideo (1080p) decode and H.264 (1080p30) encode; 3D video playback in HD in high-performance families; superior 3D graphics performance with up to 4 shaders
DISPLAYS 2x LVDS/MIPI with backlight control and I2C touch interface
摄像机 1x 8-bit Parallel Camera Interface, 1x MIPI Camera 2x lanes
音频 2x Line-In, 1 x Line-Out, 1x Mic-In, 1x Headset on 3.5mm audio jack
UART/CONSOLE 4-pin header (console), 2x UARTs on expansion connector
安全 Digi TrustFence®, TRNG, TrustZone, Ciphers, Security Control, Secure RTC, Secure JTAG, eFuses (OTP)
以太网 2x Gigabit Ethernet 10/100/1000M with AVB on RJ-45, with 2 LEDs for link/speed/activity
无线网络 2 x 2 MIMO 802.11a/b/g/n/ac: 2.412 - 2.484 GHz, 4.900 - 5.850 GHz
Security: WEP, WPA-PSK/WPA2-Personal, WPA/WPA2 Enterprise, 802.11i, Soft Access Point Mode (up to 10 clients)
蓝牙 蓝牙® 5
天线连接器 2 x U.FL on module
DIGI XBEE RF Standard Digi XBee® socket
USB 2x USB 2.0 Host, 1x USB 3.0 on Type-C connector
PCI EXPRESS MINI CARD* Full-size card support, with on-board Micro SIM slot support – dedicated 3A power supply
其他连接 2x CAN, 1x SPI, 1x I2C, 1x expansion connector
外部存储 MicroSD
BOOT CONFIGURATION On module eMMC, on SBC microSD, serial downloader and boot from fuses
DEBUG 1x JTAG for i.MX 8X (Tag-Connect), 1x SWD for MCA (Tag-Connect and header)
BUTTONS 1x power button (power on, power off, sleep, wake-up), 1x reset button
发光二极管 2x user LEDs (1x yellow, 1x green), 1x power LED (3.3 V)
POWER INPUTS 5 V at 3.2 A (typical, depending on use-case), 1x coin cell 2-pin header
POWER SUPPLY CONNECTOR Main power supply via 2mm locking barrel connector, or dedicated power connector (2-pin header)
POWER OUTPUTS 3.3 V Out (2-pin header), 5 V Out (2-pin header)
工作温度 -40 °C 至 85 °C(-40 °F 至 185 °F)
储存温度 -50 °C 至 125 °C (-58 °F 至 257 °F)
相对湿度 相对湿度 5% 至 90%(无冷凝)
RADIO APPROVALS (PENDING) 美国、加拿大、欧盟、日本、澳大利亚/新西兰
EMISSIONS/ IMMUNITY/ SAFETY (PENDING) FCC Part 15 Class B, EN 55024, EN 55032 Class B, ICES-003 Class B, VCCI Class II,
FCC Part 15 Subpart C Section 15.247 and 15.407, IC (Industry Canada), EN 300 328, EN 301 893, EN 300 440, EN 301 489-1/-17, EN 55024, EN 301 489-3
DESIGN VERIFICATION (PENDING) Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78;
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT
机械尺寸 100 mm x 72 mm (3.9 in x 2.8 in)
*PCIe is only supported on wired variants
